What is a VFD Control Panel

Definition of a VFD Control Panel

The VFD control panel serves as the command center of the VFD Drives system, integrating the VFD controller, human-machine interface, and protection circuits. Compared to traditional switchgear cabinets, this variable frequency drive panel enables dynamic adjustment of motor speed and torque (e.g., reducing a 50Hz power supply to 30Hz operation), achieving precise energy management through frequency drive control. Its core value lies in simplifying VFD parameter settings (such as acceleration/deceleration curves) via a visual operation interface, bridging the gap between manual operation and intelligent power conversion.

Key Functions of a VFD Control Panel

1.Motor Speed Control​

VFD control​ uses ​frequency drive control​ to continuously adjust motor speed (0-100Hz), eliminating the current impact of traditional start-stop operations. The ​VFD controller​ automatically optimizes acceleration and deceleration curves, enabling ​variable frequency drives​ to smoothly transition equipment to target speeds (e.g., a fan accelerating from 30Hz to 45Hz in 8 seconds).

2.Energy Efficiency

VFD energy efficiency dynamically supplies power based on load demand (power matching accuracy ±2%). In a real-world test, a water pump station using a variable frequency drive panel reduced energy consumption by 58% at 40% flow rate (compared to valve throttling).

3.Motor Protection

The components of a VFD include multiple built-in protections: current limiting (<110% FLA) to prevent VFD motors from overloading, and microsecond-level short-circuit shutdown protection for power modules. Thermal modeling algorithms predict winding temperature rise (error <±5°C), extending motor life by 30%.

4.System Monitoring​

VFD panel​ Real-time display of key parameters:

• VFD electrical​ Total harmonic distortion (THDi)
• IGBT temperature (alert at >85°C)
• Fault codes (e.g., OC/OV),VFD displays​ Support data logging and playback (over 100 event records).

5.Communication​

VFD controller​ Integrated into the DCS system via Modbus TCP (response < 100 ms). ​VFD panels​ Communication cards (e.g., Profinet) support remote modification of VFD cabinet parameters, enabling centralized VFD control panel management.

6.Reduced Wear and Tear​

Reduced voltage starter​ characteristics suppress starting current to <30% FLA (traditional direct starting reaches 600%). After a cement plant’s conveyor belt adopted the ​vfd mechanical​ solution, gearbox impact frequency decreased by 90%, and ​vfd cabinet​ maintenance costs were reduced by 42%.

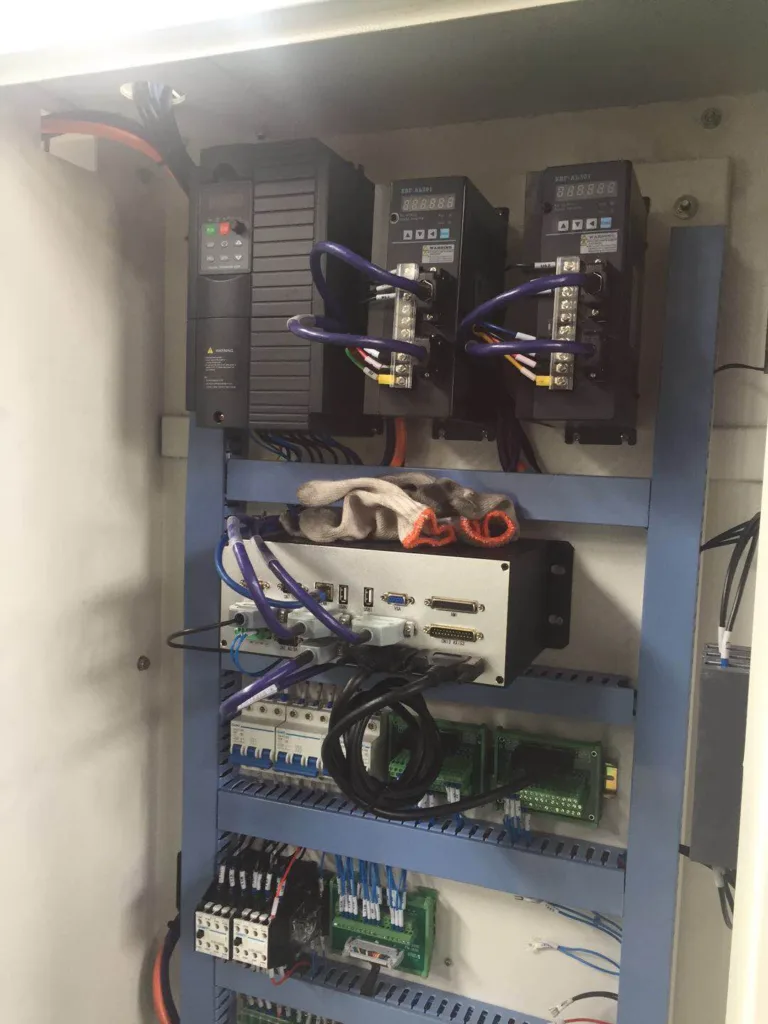

Components of a VFD control panel

1.Main Circuit Breaker

The most important input protection device on the control panel, responsible for powering on/off control of the entire system and providing short-circuit protection.

2.Surge Protector / SPD

Prevents damage to the variable frequency drive or PLC module caused by lightning strikes or power surges from the grid.

3.AC Contactor

Used for remote control of power on/off, and can also be combined with emergency stop or interlock functions to achieve automatic control.

4.Variable Frequency Drive(VFDs)

The core control device, which adjusts the motor’s frequency and voltage based on input control signals to achieve speed and torque control.

5.Input/Output Filter

Used to reduce harmonic interference (EMC), protect other equipment, or prevent signal feedback from polluting the power grid.

6.Control Transformer

Converts the main power supply voltage (e.g., 380V) to the control circuit voltage (e.g., 24V DC or 110V AC).

7.Line Reactor / Choke

Suppresses sudden changes in current, enhancing system stability, and is commonly used on the input side of medium to high-power systems.

8.HMI Panel / Keypad

Used for setting, monitoring, and debugging VFD parameters. Sometimes integrated into the VFD panel.

9.PLC or Relay Logic

Enables more complex automatic control, such as sequential start/stop, multi-pump switching, remote control, and fault interlocking.

10.Terminal Blocks

Used for neat and maintainable connection of external I/O signals, power lines, and control cables.

11.Cooling Fan / Ventilation System

Maintains the VFD and controller within safe operating temperatures, particularly critical in enclosed panels.

Applications of VFD Control Panels

1.Pumps

VFD pump control​ Dynamic adjustment ​VFD water pump​ Speed matches flow demand, eliminating valve throttling losses. Actual measurements at a water treatment plant: After adopting a ​variable frequency motor​, ​VFD pumps​ reduced energy consumption by 52% at 60% load (compared to fixed frequency operation).

2.Fans

When driving VFD fans with variable frequency drives, a 20% reduction in speed can reduce power consumption by 50% (cubic law of airflow). After installing a VFD control panel on an induced draft fan at a power plant, noise levels decreased from 85 dB(A) to 71 dB(A), and bearing lifespan increased by 2.3 times.

3.HVAC

VFDs in HVAC​ systems adjust fan/pump speed according to thermal load (temperature control accuracy ±0.5°C). Implemented according to the ​HVAC VFD definition​:

• Cooling tower fans operate at 30%-80% speed without steps
• Chiller pumps match cooling capacity requirements,Actual energy savings of 35%-60%, becoming a benchmark application for ​VFD energy efficiency​.

4.Conveyors

VFD control​ enables soft start/stop of conveyor belts (acceleration < 0.3 m/s²) and multi-speed switching (±5% synchronization accuracy). ​Variable speed drives​ reduce start/stop impact by 82% (compared to star-delta starting), significantly reducing belt wear.

5.Compressors

​VFD compressors​ automatically adjust airflow based on pressure demand (0-100% continuous control), replacing traditional unloading idle modes. ​VFD drives for compressors​ reduce start/stop cycles by 91% in food factories, saving 230,000 yuan in annual electricity costs.

6.Elevators

Frequency drive control​ precisely manages elevator leveling accuracy (±3mm). ​VFD motor control​ eliminates the impact of load fluctuations through torque compensation functionality (speed fluctuations <0.1m/s under ±15% load variations).

7.Other Industrial Machinery

AC motor VFD​ Applied to centrifuges (stepless speed regulation from 0 to 3000 rpm), mixers (torque limitation ±5%), and other VFD applications. ​Variable frequency drive​ Enables four-level regulation of injection speed in injection molding machines, making the VFD control panel a core component of smart manufacturing equipment.

Industry Energy Efficiency Data Verification:

Source: U.S. Department of Energy “Motor System Energy Efficiency Guidelines” (DOE/GO-102021-5601)

Choosing the Right VFD Control Panel

1.Motor Type and Size​

VFD motors must be selected to match the load characteristics—asynchronous motors are suitable for fans/pumps (90% of industrial applications), while permanent magnet synchronous motors are used for high-precision positioning. The power of the AC motor VFD should be ≥ 120% of the motor’s rated value. For example, a 55 kW pump requires a 66 kW VFD control panel to avoid peak current limiting. In DC drive applications, AC & DC drive control panels must be integrated with rectifier feedback units.

Power matching formula: VFD power (kW) ≥ motor power (kW) × 1.2

2.Control Options

VFD control methods are divided into three levels:

Cost comparison:

• Local control: Cost benchmark 100%
• PLC integration: +15% cost, +40% functional expandability
• Remote communication: +25% cost, +70% data visibility

3.Environmental Factors​

VFD cabinets must be selected based on the installation environment to match the required protection rating. For high-temperature workshops, choose IP54 and configure forced air cooling with a flow rate of ≥200 m³/h. For high-humidity basements, use IP55 and install anti-condensation coating. For dusty mining areas, use IP65 with full sealing. VFD installation locations must be kept away from heat sources (with a minimum distance of >50 cm) to ensure that the temperature rise of VFD electrical components is <20 K (in accordance with EN 61439 standards). A case study at a chemical plant showed that the IP55 solution had a 62% lower failure rate than the IP54 solution.

4.Service and Support​

Select suppliers that offer rapid response VFD drive repair services (with a commitment to arrive on-site within <24 hours). VFD maintenance should include firmware updates (such as security patches) and lifetime access to VFD software diagnostic tools. A long-term VFD service agreement should include:

• Annual preventive maintenance (capacitor/fan replacement)
• Remote fault decoding (supporting real-time code analysis)

The essence of selection is balancing performance and lifecycle costs—while premium service increases the procurement cost by 8%, it reduces downtime losses by 40%.

Conclusion

The VFD control panel serves as the intelligent hub for variable frequency drives, enabling precise speed control and energy management through the VFD controller. The core of the selection process lies in matching the load characteristics of VFD applications (e.g., soft start for pumps, wide speed range for fans) and adapting to environmental protection ratings. During implementation, it is essential to coordinate the dynamic response capabilities of VFD drives, hardware robustness, and service support systems to establish a comprehensive solution spanning parameter configuration to energy feedback control.
