How Do You Select a VFD for a Pump?

When your VFD pump (whether it’s a VFD for water well pumps, a VFD for swimming pool pumps, or a general water supply system) experiences low efficiency, frequent start-stop impacts, or abnormal energy consumption, the root cause is likely the wrong VFD selection. A properly matched VFD pump controller can serve as the “smart brain” for energy savings, reduced consumption, and extended equipment lifespan.However, with so many models and parameters available, how can you avoid costly trial-and-error? We will break down the core steps of the selection process to help you precisely identify the most suitable VFD pump drive for your needs.

What is a VFD pump?

Strictly speaking, a “VFD pump” does not refer to a specific type of water pump, but rather a pump system precisely controlled by variable frequency drive (VFD) technology. It consists of two core components:
  • Pump body: Examples include submersible well pumps , centrifugal pumps, and swimming pool circulation pumps .
  • Variable frequency controller: This refers to a specialized VFD pump controller or VFD well pump controller.

The magic of this combination lies in the fact that through VFD pump control, the system can dynamically adjust the speed of the pump (rather than the traditional crude “on/off” method). Imagine this—when your water demand decreases (such as at night or when the pool filter is running smoothly), the VFD pump drive intelligently allows the pump to “run slowly” rather than “run at full speed.”This not only enables precise flow/pressure control but, more importantly, motor power consumption is nearly proportional to the cube of the speed—reducing speed by a small amount results in a significant drop in energy consumption!

Why You Need a VFD for Pump Applications

Installing a VFD pump controller on a water pump is not just a trend, but a practical solution to address the drawbacks of traditional pump control systems. This is particularly significant for pumps operating under various conditions, such as deep well pumpsand swimming pool pumps . Three core benefits:

1.Maximize Energy Savings

The majority of a pump’s energy consumption comes from the drive motor, and power consumption is approximately proportional to the cube of the speed! VFD pump control can precisely match the actual required flow rate, allowing the pump to operate at reduced speed and load.For example, during low-flow filtration at night in a swimming pool, a pool pump VFD can allow the pump to “cruise leisurely” instead of running at full speed, often resulting in significant reductions in electricity bills (Prime in Energy Saving).

2.Extend Pump Lifespan with Soft Start/Stop

The sudden current/water hammer impact during traditional start/stop cycles is an “invisible killer” for pump and pipeline systems. VFD drives provide smooth acceleration/deceleration ramps (Soft Start & Stop), acting like a “buffer” for critical equipment like VFD well pumps, significantly reducing mechanical stress on bearings, seals, and impellers (Stress Reduction), and greatly extending service life!

3.Precision Flow and Pressure Control

Say goodbye to energy waste caused by valve throttling. VFD for pumps directly adjusts motor speed, enabling seamless adjustment of pump output to achieve constant pressure supply/drainage (Precise Flow & Pressure Control). This is the cornerstone of intelligent control for systems requiring stable pressure, such as booster pump stations, or those relying on precise chemical dosing.
In short: A high-quality VFD pump drive acts as your system’s energy optimizer, maintenance assistant, and automation brain—all in one.It’s the smart choice for facilities that value efficiency, reliability, and intelligent control.

Know Your Pump Type Before Choosing a VFD

“The essential prerequisite for selecting a VFD controller is critical! Different types of pumps are like athletes with distinct personalities, and the matching VFD pump controllers and speed control strategies also vary significantly. Choosing the wrong one can result in inefficient performance or even damage to the equipment. Let’s delve into the two main types of pumps:

1. Positive Displacement Pumps (PD Pumps)

Positive displacement pumps function like a precise syringe or rotating gear chamber, trapping fluid within a fixed volume and mechanically forcing it out of the pump housing (displacement). Flow rate primarily depends on the pump chamber size and speed (theoretically constant) and is relatively insensitive to changes in outlet pressure.

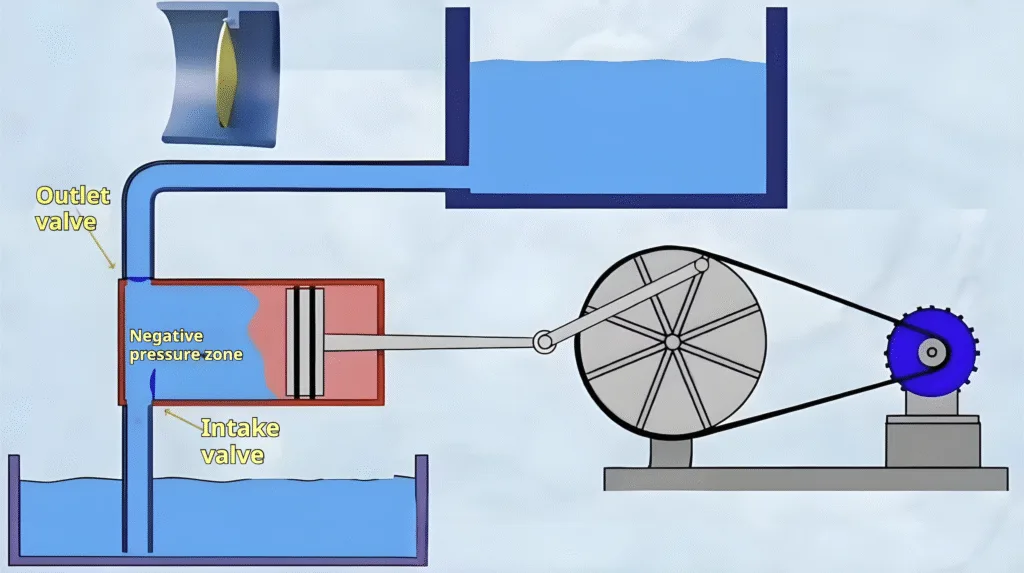

Reciprocating positive displacement pumps
Advantages:
  • High natural head: Can easily generate extremely high pressures (e.g., hundreds of bars).
  • Constant and controllable flow rate: With constant speed, the output flow rate remains essentially constant, making them ideal for applications requiring precise metering (e.g., chemical dosing) or high-pressure, low-flow applications (certain chemical processes).
  • Capable of handling viscous liquids: Highly adaptable to high-viscosity fluids (e.g., oil, slurry, syrup).
Limitations:
  • Pressure-sensitive: Must be equipped with a safety valve (relief valve); otherwise, complete blockage of the outlet (shut-off) can cause pressure to rise indefinitely, damaging the pump or piping! VFD control is by no means a simple “mindless speed adjustment.”
  • Limited flow range: Compared to centrifugal pumps, the unit volume flow rate is generally lower.
  • May have pulsations: Some types (such as piston pumps) have pulsating flow output.
  • Lower speed limit: Excessively low speeds may cause stalling or insufficient sealing.
Main types:
  • Reciprocating positive displacement pumps (Reciprocating PD Pumps): such as piston pumps, plunger pumps, and diaphragm pumps. Working principle: The core component performs linear reciprocating motion within a chamber (imagine the action of a hand pump). During the forward stroke, the volume is compressed and fluid is expelled; during the backward stroke, the volume expands and fluid is drawn in. VFD for well pumps When used with deep well piston plunger pumps, special attention must be paid to their pulsation characteristics.
  • Rotary PD Pumps: such as gear pumps, screw pumps, vane pumps, and cam pumps. Working principle: The core consists of precision-meshing gears, screw rotors, vanes, or cams that continuously form closed, moving chambers during rotation (think of two meshing gears), “carrying” the fluid from the suction port to the discharge port.This type of pump has relatively smoother flow. When using a VFD pump controller to regulate the speed of this type of pump, pay attention to its minimum speed requirements and overload protection logic.

2.Centrifugal Pumps

Centrifugal pumps are the type of pump you have seen in most water pumps (such as household water supply pumps, swimming pool circulation pumps, and cooling tower pumps)! Working principle: The core is a high-speed rotating impeller (a wheel with curved blades). The rotating impeller transfers kinetic energy to the fluid. Under the action of centrifugal force, the fluid is flung from the center of the impeller (low-pressure zone) to the outer edge of the impeller (high-pressure zone), gaining speed and pressure. It then passes through the volute, where part of the kinetic energy is converted into pressure energy and transported outward.

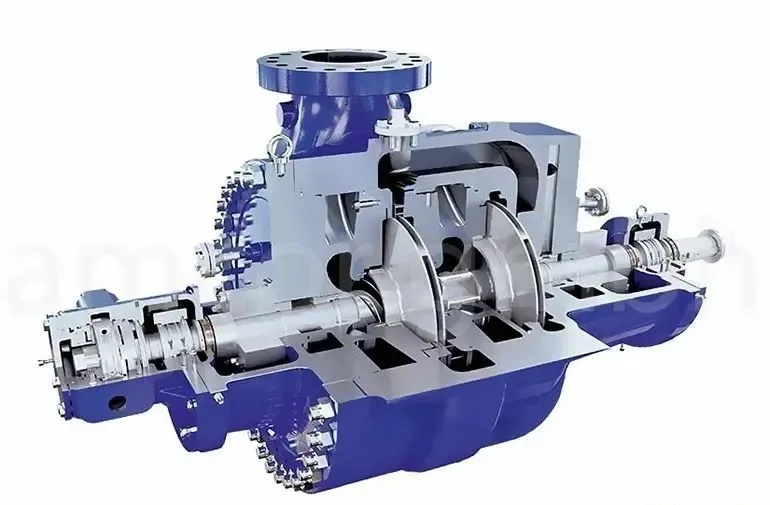

Centrifugal Pumps
Advantages:
  • Wide flow range: It is the absolute mainstay for handling large flows and medium to low head (water supply for water plants, air conditioning circulation, swimming pool filtration). Pool pump VFD or VFD for swimming pool pumps are primarily designed for such pumps.
  • Continuous and smooth output: No pulsation (ideal state).
  • Relatively simple structure, low cost, and easy maintenance: Extremely wide range of applications.
  • Naturally compatible with VFD: Flow rate, head, power, and speed follow similar laws (flow rate ∝ speed, head ∝ speed², power ∝ speed³). This means that VFD pump control can efficiently adjust performance parameters by varying speed! This is the core of energy savings in deep well pumps with VFD.
Limitations:
  • Limited head: Single-stage centrifugal pumps cannot generate the ultra-high pressures achievable by positive displacement pumps (deep well applications typically use multiple stages in series).
  • Viscosity-sensitive: Efficiency decreases sharply with increasing fluid viscosity, making it unsuitable for pumping highly viscous liquids.
  • Cavitation-sensitive: Insufficient inlet pressure can cause cavitation, damaging the impeller.
  • Risk of shutdown: Prolonged complete closure of the outlet (or extremely low flow) converts energy into heat, causing the fluid inside the pump to rapidly overheat and damage mechanical seals and bearings. Unlike positive displacement pumps, it cannot rely solely on safety valves to protect against shutdown conditions.

Why Pump Type Matters for VFD Selection?

Characteristics

PD Pump

Centrifugal Pump

Working Principle

Physically restrain and push a fixed volume of fluid

The centrifugal force of the impeller imparts kinetic energy and pressure to the fluid

Flow Characteristics

Basically constant, mainly dependent on speed and volume, with little influence from pressure

Significantly changes with head/pressure (steep curve), flow ∝ speed

Head Capacity

Extremely high head, theoretically limited only by structural strength

Medium to low head (single stage), head ∝ speed²

Power-Speed Relationship

Power ∝ Speed (approximately linear)

Power ∝ Speed³ (huge potential for speed control and energy savings!)

Fluid Viscosity Adaptation

Excellent, suitable for high-viscosity fluids

Poor, efficiency decreases sharply with increasing viscosity

Shutdown Condition

Extremely dangerous! Must be equipped with a safety valve or protective shutdown logic

Allow brief shutdown (still avoid prolonged shutdown), lowest power consumption, be alert to maximum heat generation

Minimum Speed Limit

Usually has a strict lower limit (otherwise it will jam/be unable to seal)

Lower limit (but cavitation/inefficient zone must be avoided)

Pulsation

May be significant (especially reciprocating)

Continuous and steady

Compatibility With VFD

Speed control can be achieved, but the following factors must be taken into consideration: overload protection, minimum speed, pulsation

VFD pump drives are the golden opportunity! High energy efficiency potential and significant control effects

Typical Applications

Metering pumps, high-pressure plunger pumps, grease transfer pumps, screw pumps for high-viscosity fluids

Pool pump VFD, cooling water pump, VFD for well pump, most water transfer pumps

Key conclusion: Never blindly order a VFD controller without understanding the pump first! Centrifugal pumps are typically the preferred target for energy-saving retrofits and precise flow control, especially VFD for well pumps and VFD for swimming pool pumps. However, selecting a VFD pump controller for positive displacement pumps (such as special metering or high-viscosity applications) requires extra caution and must take into account their protection requirements. Be sure to confirm the type of pump you have before selecting a model!

Key Factors to Consider When Selecting a VFD

Choosing the right VFD pump controller isn’t just about filling in parameter tables—it’s about ensuring system efficiency, pump longevity, and quiet, reliable operation.
Don’t be overwhelmed by complex model numbers. Focus on these five core dimensions—the “Five-Dimensional Gold Standard”—to select the ideal VFD for your pump application.

1.Motor Compatibility: Power, Voltage, Current Must Align

  • Rated Output Matching: The VFD’s rated output power and voltage must match or slightly exceed the motor nameplate ratings.Undersizing the VFD leads to overload and potential motor failure. Oversizing wastes cost and may cause control instability.
  • Voltage Confirmation: Confirm motor voltage (e.g., 220V, 380V, 480V) and any special voltage requirements.
  • Current Matching is Critical: The VFD’s rated current must meet or exceed the motor’s full load amperage (FLA).For heavy-duty or frequent start/stop applications—such as deep well pump systems—a safety margin of 10–20% is recommended, especially for cold-start conditions.
  • Motor Type Identification: Is the motor asynchronous (induction), permanent magnet (PM), or submersible?This affects control mode selection (e.g., V/F vs. vector control) and cooling strategy, particularly for deep well pump applications.

2.Pump Load Profile: Understand Load Type & Power Curve

  • Centrifugal Pumps: Obey the classic affinity laws:
    • Power ∝ Speed³ → Lowering speed to 80% can cut power consumption to ~51%!
    • This underpins the energy savings of VFD-controlled pool pumps or municipal water systems.
  • Positive Displacement Pumps: Exhibit near-linear power-to-speed behavior (Power ∝ Speed). VFDs are applied more for control—not energy savings. Selection must emphasize:
    • Overload Protection: Pressure surges or relief valve failures can be catastrophic.
    • Minimum Speed Control: Avoid stalling or poor sealing at low speeds.
  • Load Curves are Essential: Always obtain the Q-H (flow vs. head) and Q-P (flow vs. power) curves. These confirm that the VFD can operate stably across the expected range without overloading.

3.Control Interface & Command Logic: How Will You Drive the System?

  • Command Sources:
    • Local Control: On-panel start/stop and speed adjustment—simple and direct.
    • Analog Signals (AI): 0–10V or 4–20mA input from PLC/DCS/transmitters—ideal for closed-loop pressure or flow control.
    • Digital I/O (DI/DO): For discrete commands like start/stop, fault reset, and multi-speed selection.
    • Fieldbus Communication: Modbus RTU, BACnet, Ethernet/IP—best for centralized automation.
  • Control Requirements:
    • Basic Speed Control? V/F mode suffices.
    • Precise Flow or Pressure Regulation? Use Sensorless Vector Control for high accuracy, fast dynamic response, and superior low-speed torque—especially critical in deep well pump control or to mitigate water hammer effects.

4.Environmental Durability: Protection and Cooling Matter

  • IP Rating:
    • IP20: For clean, cabinet-enclosed environments.
    • IP54/IP55: Wall-mounted in light dust or humid locations.
    • IP66/IP68: Outdoor-grade—mandatory for deep well pumps, pool pump rooms, and offshore use.
  • Thermal Endurance:
    • Confirm that the VFD can operate under high ambient temperatures (e.g., 50°C+ at wellheads).
    • Ensure adequate derating or heat dissipation design is included.
  • Cooling Method:
    • Air Cooling: Most common—ensure unblocked airflow and regular dust cleaning.
    • Liquid Cooling: For high-density or harsh environments—more complex, but effective.

5.Protection Functions & Compliance: Safety Built In

  • Standard Protection Features:
    • Overvoltage (OV), Undervoltage (UV), Overcurrent (OC), Overload (OL)
    • Overheating (OH), Short Circuit (SC), Phase Loss (PUF), Ground Fault (GF)
  • Pump-Specific Protections:
    • Dry Run Protection: Prevents pump burnout when water source is lost.
    • Underload Detection: Detects anomalies like impeller detachment or pipe rupture.
    • Sleep/Wake Logic: Ideal for booster systems—VFD enters energy-saving mode at set pressure and restarts on demand.
  • Harmonic Mitigation:
    • Built-in DC Choke: Minimizes input current distortion—should be standard for most setups.
    • AC Line Reactors: Internal or external—reduces electromagnetic interference, protects other devices on shared power networks (ideal for labs, hospitals, precision facilities).
  • Standards Compliance:
    • Ensure compliance with local safety and EMC regulations (e.g., CE, UL, cUL).
    • Compliance isn’t optional—it’s protection against liability and system instability.

Matching VFD Features to Pump Needs

Selecting a variable frequency drive (VFD) for a water pump is not just about matching power and voltage—it’s about choosing the right functionality for the application.
Below, we analyze five common industrial pump types and highlight the key selection criteria to help you avoid costly mismatches and achieve optimal control.

1.Deep Well Submersible Pumps

Multi-stage centrifugal pumps for water wells – “VFD for well pumps”
Core Application: Deliver high-head water from deep wells, prevent frequent starts/stops that stress the pump and casing.
VFD Selection Highlights:
  • Voltage/Power/Phase: Must strictly match the motor nameplate. Common ratings include:
    • 220V single-phase (low power)
    • 380V / 480V three-phase (medium to high power, up to 300+ kW)
  • Control & Protection:
    • Sensorless vector control for stable torque and smooth operation, especially during water level changes.
    • Dry-run protection is essential.
    • Voltage protection must tolerate long cable voltage drops.
  • Smart Features:
    • Sleep/Wake logic for energy-saving auto shutdown.
    • PID closed-loop pressure control (optional) for constant-pressure supply.
  • Environment: IP66-rated enclosures for outdoor, dust, and rain protection.

2.Swimming Pool Circulation Pumps

Centrifugal pumps – “VFD for swimming pool pumps”
Core Application: Continuous water circulation, filtration, and quiet operation—especially in residential or commercial pools.
VFD Selection Highlights:
  • Power/Voltage: 0.37–15 kW typical.
    • Residential North America: 120V / 240V single-phase input
    • Commercial: Three-phase input
  • Control Mode:
    • Standard V/F control suffices; energy savings follow the affinity law (power ∝ speed³).
    • Soft start/stop to minimize water hammer and reduce noise.
  • Functional Features:
    • Multi-speed presets for different filtration/cleaning modes.
    • Low-noise operation is a must in residential settings.
  • •Protection: IP55 or IP66 enclosures for humid environments like pump rooms.

3.Building Booster Pump Systems

Multiple centrifugal pumps in parallel – “VFD for water pumps”
Core Application: Maintain constant pressure in high-rise buildings or complex water supply networks.
VFD Selection Highlights:
  • Power/Voltage: 5.5–90 kW range; typically 380V / 480V three-phase.
  • Core Functionality:
    • Integrated PID control using 4–20mA pressure transmitter input.
    • Ensures high-precision constant-pressure supply.
  • Advanced Features:
    • Lead-lag rotation, Sleep/Wake logic, and master-slave polling to optimize pump cycling and efficiency.
    • Multi-pump control interface via communication or hardwiring for large systems.
  • Protection:
    • Under-voltage, overload, and motor thermal modeling protection.

4.Cooling Tower Circulation Pumps

Centrifugal pumps – “VFD drives for cooling applications”
Core Application: Circulate cooling water, modulate flow based on thermal load (seasonal/day–night variation).
VFD Selection Highlights:
  • Power/Voltage: Medium to high (15–315+ kW), three-phase input.
  • Control Logic:
    • V/F control + PID loop (based on temperature or ΔT) for demand-based speed adjustment.
    • Optional vector control for high starting torque after shutdown.
  • Durability:
    • Heat-resistant design with robust thermal management is essential due to proximity to heat sources.

Common Mistakes When Choosing a Pump VFD

Selecting an optional VFD pump controller may seem straightforward—but overlooking key factors can lead to degraded performance, system instability, or even motor failure. Avoid the following critical mistakes:

1.The “Power-Only” Trap

Focusing solely on motor power while ignoring voltage rating (220V vs. 380V/480V) and phase configuration can result in misapplication.
⚠️Check: Can your single-phase input VFD drive a three-phase motor? If not, a mismatch here will cause instant failure.
Using an underpowered VFD turns it into the weakest link in your system—leading to premature faults or thermal shutdown.

2.The “Invisible Killer”: Undersized Current

Neglecting to verify that the VFD’s rated output current exceeds the motor’s full load amperage (FLA) is a common yet costly mistake.
Especially under heavy startup or overload conditions, this mismatch can cause drive trips or permanent damage.

3.Misaligned Load Characteristics

Each pump type demands tailored control logic:
  • Positive displacement pumps (e.g., dosing pumps) using standard V/F control without torque compensation risk overpressure and pipe rupture during locked-rotor scenarios.
  • Centrifugal pumps (e.g., pool pumps) offer great energy-saving potential with speed control—but can overheat quickly under blocked outlet or zero-flow conditions.

4.Insufficient Ingress Protection (IP)

Installing a cabinet-type IP20 VFD in environments with high humidity or water exposure—such as wellheads or pool equipment rooms—is a critical misstep.
These locations demand IP55/IP66-rated drives to prevent rapid corrosion, short circuits, or internal PCB damage.

5.Neglecting Harmonic Filtering

Omitting built-in DC chokes or external line reactors exposes your facility to harmonic distortion—a form of electrical pollution that can disrupt nearby sensitive equipment (e.g., medical devices, lab systems).
In shared grid environments, this can trigger system-wide instability or even disputes over power quality.
