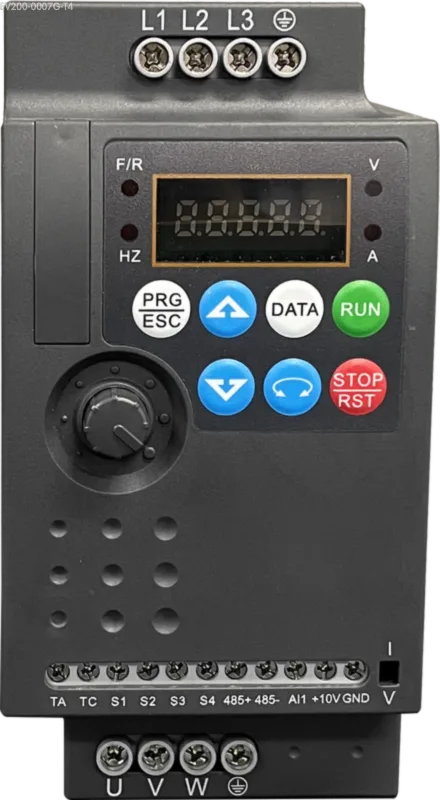

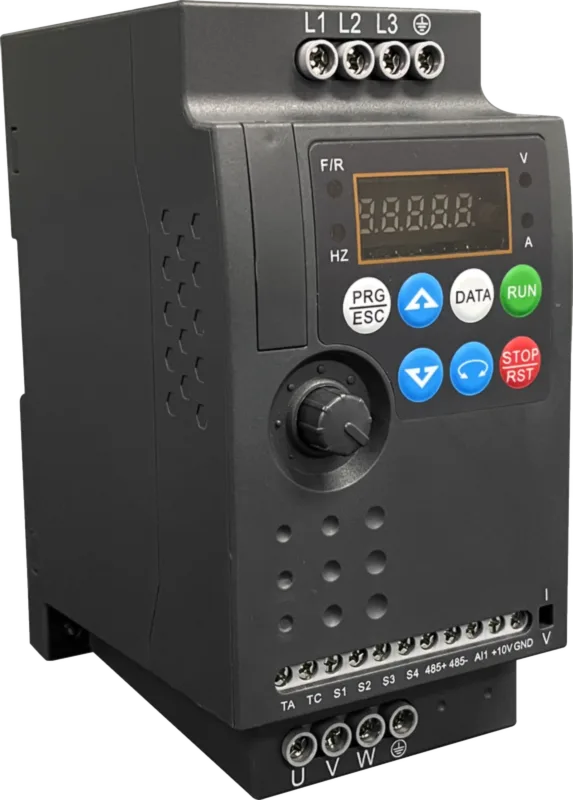

EV200-0007G-T4: Industrial 0.75kW (1HP) 3-Phase Micro VFD
Why Choose This 0.75 kW (1HP) 3-Phase VFD?
Space Efficiency: For OEMs building compact machines (like labelers or winders), every millimeter counts. The EV200 fits where other drives won’t.
Cost-Effective Multi-Axis Control: Its low cost and small size make it affordable to put a dedicated VFD on every small motor in a production line, rather than using a large, complex central drive system.
Reliable in Harsh Environments: The coated PCB and independent air duct make it resilient against the lint, dust, and humidity often found in light industrial manufacturing.
Energy Savings: Replacing mechanical speed variators or dampers with this VFD can reduce energy consumption by 20-60% by matching motor speed to the actual load demand.
Motor Protection: Offers comprehensive protection against phase loss, overcurrent, and overvoltage, protecting your expensive 380V motors from grid fluctuations and jams.
Typical Application Fields
Textile Machinery
Controls spinning frames, winders, and knitting machines where smooth acceleration prevents thread breakage.
Packaging Equipment
Ideal for labeling machines, capping machines, and small belt conveyors requiring precise speed regulation.
Industrial Fans & Pumps
Regulates speed for small coolant pumps and ventilation fans to optimize flow and reduce noise.
Control Characteristics
Control Mode | without PG Vector(SVC), V/F control |
|---|---|
Highest Frequency | Vector control: 0~500Hz; V/F control: 0~500Hz |
Start Torque | G type:Â 0.5Hz/150% (SVC)Â |
Speed Range | 1:100 (SVC) |
Speed Control Accuracy | ±0.5% (SVC) |
Overload Capacity | G type: 150% rated current 60s; 180% rated current 3s |
I/O Specifications
Digital Input | 4 digital input terminals |
|---|---|
Analog Input | 1 analog input terminal |
Relay Output | 1 relay output terminal |
Communication | Supports Modbus, RS85 (Assumed RS485), CANopen, CANlink |
Operating Environment
Installation Site | Indoors, no direct sunlight, no dust, corrosive gases, etc. |
|---|---|
Altitude | Below 1000 meters |
Ambient Temperature | -10°C to +40°C (derating required for 40~50°C) |
Humidity | <95%RH, no condensation |
Structural Dimensions
Dimensions (W x D x H) | 73 x 112.6 x 143 mm |
|---|---|
Installation Size (A x B) | 60 x 129 mm |
Installation Hole | Ф4.4 |
Quality Assurance
This product is developed and manufactured by Nanjing Oulu Electric Corp., Ltd. As a national high-tech enterprise focusing on industrial automation and new energy, we have an experienced R&D team and advanced production facilities, dedicated to providing high-quality, reliable products and solutions to customers worldwide.
Frequently Asked Questions (FAQ)
1. Can I use this VFD with single-phase 220V power?
No. The EV200-0007G-T4 requires a Three-Phase 380V input. Connecting it to single-phase 220V will result in an undervoltage fault (FU09) or failure to power up. For single-phase 220V input, please choose the EV200-0007G-S2.
2. Does this model have a braking unit for a braking resistor?
No. The 0.75kW to 2.2kW models in the EV200 series do not have a built-in braking unit. You cannot connect an external braking resistor. If your application requires very fast stopping (high inertia), consider using the DC Injection Braking function (Parameters P6-10 to P6-14) or oversizing the drive.
3. How do I set the VFD for a fan application?
For fans, you generally want Variable Torque (V/F) control. Set P0-01 = 2 (V/F Control). You may also want to enable “Catching a Spinning Motor” (P6-00 = 1) if the fan might be windmilling when the drive starts.
4. Can I install these drives touching each other?
Yes. The EV200 series supports side-by-side installation. The independent vertical air duct design allows heat to escape from the top without heating the adjacent unit, permitting zero clearance installation horizontally to save cabinet space.
Quick Start Guide (How-To)
Warning: Ensure the 380V power supply is disconnected before wiring.
Step 1: Mechanical Installation

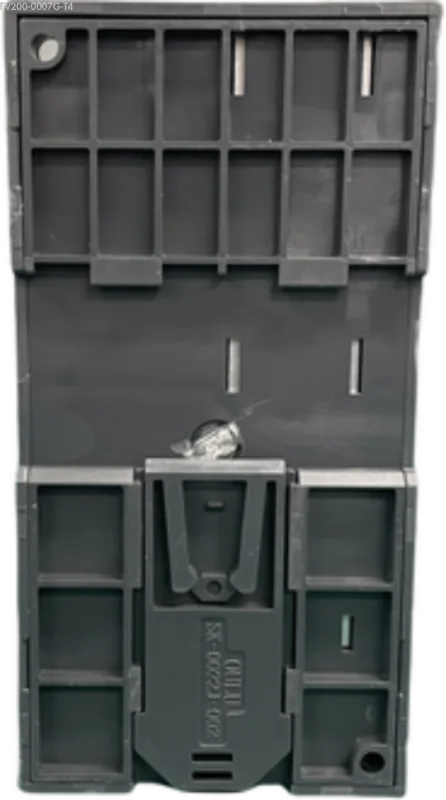

Mount the VFD on a DIN rail or backplate inside your control cabinet. Ensure the vertical airflow path is not blocked (leave 100mm clearance top/bottom).
Step 2: Wiring
Input: Connect Three-Phase 380V power to terminals R, S, T.
Output: Connect the 0.75kW motor to terminals U, V, W.
Ground: Connect the Earth Ground to the PE terminal.
Step 3: Parameter Setup
Power on the VFD. Enter the programming menu (PRG) and set the motor parameters (P1 Group) to match your motor nameplate:
P1-01: 0.75 (Rated Power)
P1-02: 380 (Rated Voltage)
P1-03: 2.1 (Rated Current – check motor plate!)
P1-04: 50.00 or 60.00 (Hz)
P1-05: Motor RPM (e.g., 1440)
Step 4: Auto-Tuning
To optimise vector control:
Set P0-01 = 0 (SVC).
Set P1-37 = 1 (Static Auto-tuning) or 2 (Rotary, if motor is uncoupled).
Press RUN.
Step 5: Operation
Set P0-02 = 0 for Keypad Control or 1 for Terminal Control (External Switch).
Use the potentiometer or Up/Down keys to set the frequency and press RUN to start the motor.
Core Features & Advantages
Micro-Compact Design (73mm Width): The ultra-slim book-style design saves up to 45% of cabinet space compared to traditional drives. It supports side-by-side mounting, enabling engineers to pack more axes into smaller enclosures for multi-motor machines.
Industrial 3-Phase 380V Input: Designed specifically for 3-phase industrial power grids (380V-440V), offering balanced power draw and superior efficiency compared to single-phase converters.
Sensorless Vector Control (SVC): Despite its small size, it features sophisticated SVC algorithms (P0-01=0) delivering 150% starting torque at 0.5Hz. This ensures a reliable startup for high-friction loads like loaded conveyors or sticky material mixers.
Independent Air Duct Cooling: The vertical straight-through air duct isolates cooling air from the PCB, preventing conductive dust (common in textile and ceramic plants) from causing short circuits, significantly extending service life.
Streamlined I/O for Automation: Equipped with 4 Digital Inputs, 1 Analogue Input, and 1 Relay Output. This optimised configuration connects easily to PLCs and sensors for start/stop logic, speed reference, and fault monitoring.
Process Control Functions: Includes a built-in PID Controller for maintaining constant pressure or flow in small pump systems, and a Simple PLC for executing automated timing cycles without external logic controllers.
