EV210-0022G-S2: High-Torque Miniature Single Phase VFD | 2.2kW, 220V

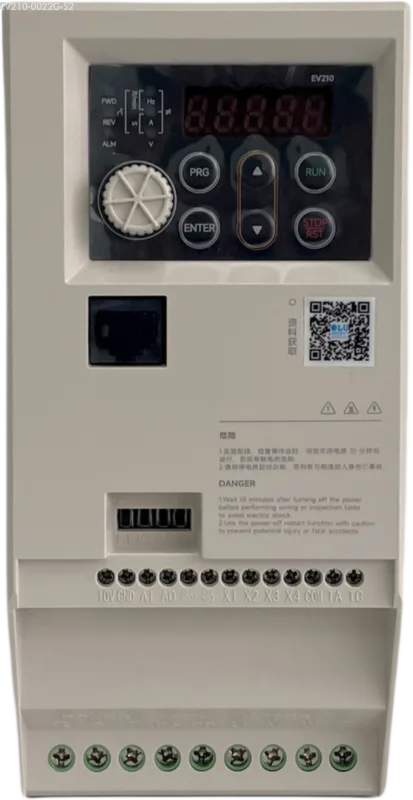

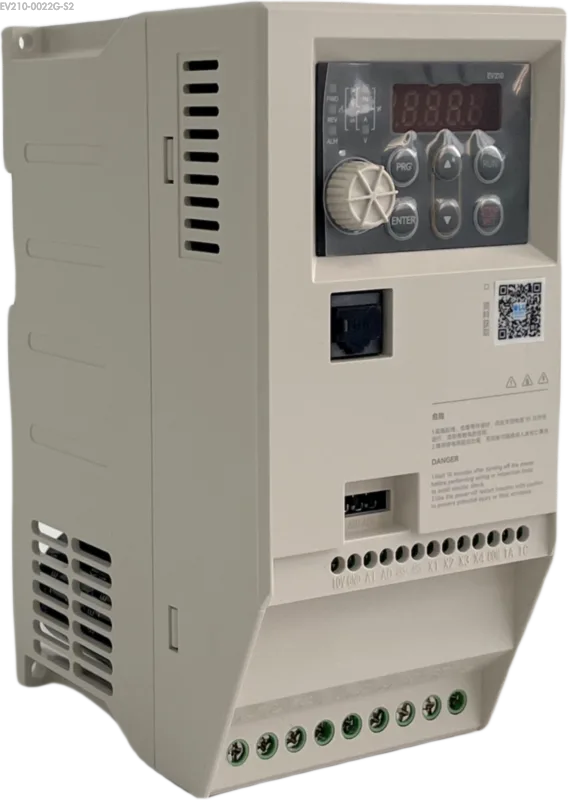

Why Choose This 2.2 kW (3HP) 220V Single Phase VFD?
When panel space is as critical as performance, this specific 2.2 kW (3HP) VFD is the superior choice. While other drives offer this power rating, the EV210-0022G-S2 is engineered for machine builders and retrofitters who need full vector control performance in the smallest possible package.
- Maximum Power, Minimum Space: The EV210-0022G-S2 provides 2.2kW (3HP) of power in a slim 72mm chassis. It’s the perfect solution for running 3HP (or smaller) three-phase motors from a 220V single-phase supply in crowded control cabinets.
- Superior Low-Speed Control: While many compact drives only offer basic V/F control, this model provides advanced sensorless vector control. This is essential for applications like machine tools, wire drawing, and small conveyors that need high torque from a standstill (150% at 0.25Hz).
- Integrated & Cost-Effective: By integrating features like a PID controller and RS-485 Modbus, this drive saves you money. You can automate simple pump or fan systems without needing an external PLC, reducing hardware cost, simplifying wiring, and saving space.
- Reliable Protection:Â The EV210 series features advanced overcurrent and overvoltage suppression algorithms, preventing nuisance trips during operation and keeping your machinery running reliably.
Typical Application Fields
Machine Tools
Ideal for small lathes, grinders, and drilling machines as a machine tool VFD, providing precise speed and torque control in a compact form factor.
Textile & Wire Drawing
An excellent textile machine VFD or for wire drawing, where the high starting torque (150% at 0.25Hz) is critical for handling material tension and inertia from a near-stop.
Pumps and Fans
A smart choice for fan and pump VFD applications up to 2.2kW, using the built-in PID to maintain constant pressure or flow for significant energy savings.
Control Characteristics
Control Mode | High-Performance Current Vector Control , Sensorless Vector Control (SVC), V/F Control |
|---|---|
Highest Frequency | Vector Control: 0~500Hz; V/F Control: 0~500Hz |
Carrier Frequency | 0.5KHz ~ 16.0KHz (Adjustable, for low noise operation) |
Speed Tracking | Features “speed tracking speed restart function” |
DC Braking | Start Frequency: 0.00 ~ Max Freq; Braking Time: 0.0 ~ 100.0s |
Accel/Decel Time | 0.0s ~ 6500.0s |
I/O Specifications
Analog Input | 1 channel (0~10V / 0~20mA) |
|---|---|
Analog Output | 1 channel (0~10V / 0~20mA) |
Digital Output | 1 Programmable Relay Output (TA, TC) |
Communication | Standard RS-485 (Modbus) |
Operating Environment
Installation Site | Indoors, no direct sunlight, no dust, corrosive gases, etc. |
|---|---|
Altitude | Below 1000 meters |
Ambient Temperature | -10°C to +40°C |
Humidity | <95%RH, no condensation |

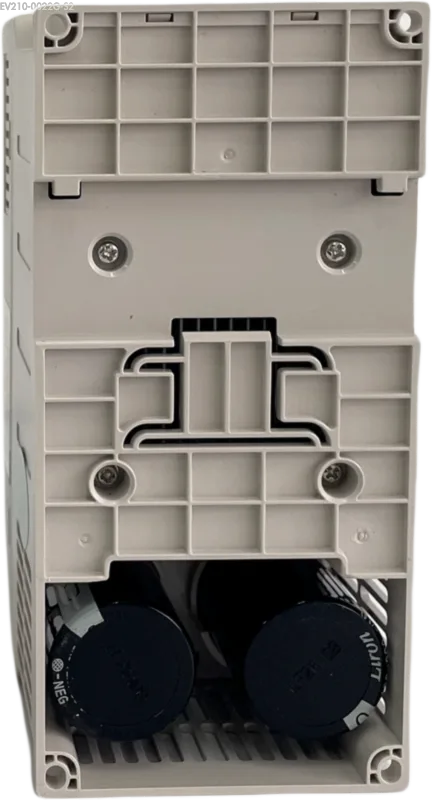

Structural Dimensions
Dimensions (W x D x H) | 72 x 105 x 146 mm |
|---|---|
Installation Size (A x B) | 63.0 x 136.5 mm |
Installation Hole | φ2.3 |
Quality Assurance
This product is developed and manufactured by Nanjing Oulu Electric Corp., Ltd. As a national high-tech enterprise focusing on industrial automation and new energy, we have an experienced R&D team and advanced production facilities, dedicated to providing high-quality, reliable products and solutions to customers worldwide.
Frequently Asked Questions (FAQ)
- What is the main difference between the EV210 and EV510A series?The EV210 series is a miniature VFD, designed specifically for applications where installation space is extremely limited. This 2.2kW model is only 72mm wide. The EV510A is a high-performance general-purpose drive that is physically larger (the 1.5kW model is 112mm wide) and typically offers a more extensive set of I/O terminals (e.g., 7DI/2AI/2RO vs. the EV210’s 4DI/1AI/1RO).
- What does 150% torque at 0.25Hz mean for my application?This is a key feature of the EV210’s sensorless vector control (SVC). It means the drive can generate 1.5 times the motor’s rated torque when the motor is turning at only 0.25Hz (a near-standstill). This is critical for starting high-inertia loads (like a loaded conveyor or machine tool) smoothly and powerfully, without the motor stalling or the drive tripping on overcurrent.
- How do I select the right VFD model for my motor?Selection depends on your motor’s rated power, rated voltage, and application load type. In the model EV210-0022G-S2, “0022” indicates it’s for a 2.2kW motor, “G” stands for general-purpose load (suitable for constant torque applications like machine tools and conveyors), and “S2” signifies a single-phase 220V input. Always ensure the VFD’s rated output current (9.6A for this model) is greater than or equal to your motor’s nameplate rated current.
- Can I connect this VFD to a PLC or HMI?Yes. The EV210-0022G-S2 comes standard with a built-in RS-485 communication interface that supports the Modbus RTU protocol, allowing it to be easily integrated into a larger automation system for centralized control and monitoring.
Quick Start Guide (How-To)
Warning:Â The following steps are a basic guide only. All electrical work must be performed by qualified professional personnel. Before any wiring, ensure the main power is completely disconnected and wait at least 10 minutes for the internal capacitors of the VFD to fully discharge.
- Step 1: InstallationMount the inverter vertically on a sturdy, non-flammable surface, such as a metal mounting plate inside a control cabinet. Ensure there is sufficient clearance around the unit (at least 100mm recommended) for proper ventilation and heat dissipation.
- Step 2: Main Circuit WiringConnect the Single Phase 220V AC power lines to the inverter’s input terminals R and S(L1). Connect the three wires of the three-phase asynchronous motor to the inverter’s output terminals U, V, and W. Securely connect the ground wire to the inverter’s PE (Protective Earth) terminal.
- Step 3: Control Circuit Wiring (for Basic Start/Stop)Connect one end of an external switch (or button) to the digital input terminal X1. Connect the other end of the switch to the common terminal COM. Set parameter P0-02 (Command source selection) to “1” (Terminal command channel). Set parameter P4-00 (X1 function selection) to “1” (Forward run).
- Step 4: Motor Parameter Setting & Auto-tuningUpon first power-up, accurately enter the following parameters from your motor’s nameplate :
- P1-01:Â Motor Rated Power (set to 2.2kW)
- P1-02:Â Motor Rated Voltage (e.g., 220V)
- P1-03:Â Motor Rated Current
- P1-04:Â Motor Rated Frequency
- P1-05: Motor Rated Speed. For optimal vector control performance, perform a motor auto-tune. Set parameter P1-37 (Motor auto-tuning method) to “2” (dynamic auto-tuning) or “3” (static auto-tuning) and start the inverter.
- Step 5: Test RunAfter confirming all wiring and parameter settings are correct, turn on the main power. Close the external switch connected between X1 and COM. The motor should start rotating in the forward direction. Open the switch, and the motor will stop according to the set deceleration time.
Core Features & Advantages
- Ultra-High Low-Speed Torque: Implements advanced sensorless vector control (SVC) to achieve 150% rated torque at just 0.25Hz, providing powerful and stable control for heavy-load startups like machine tools or loaded conveyors.
- Compact Miniature Design: With a width of only 72mm, this miniature VFD is one of the most compact 2.2kW drives on the market, saving critical installation space in control cabinets and OEM equipment.
- Robust Overload Capacity: Built for tough G-type (general purpose) loads, this 2.2kW VFD withstands 150% of rated current for 60 seconds and 180% of rated current for 3 seconds, handling demanding industrial cycles with ease.
- Integrated Automation Features:Â Includes a built-in PID controller for automating process control (like pumps and fans) and 16-segment multi-speed operation for complex programmed sequences.
- Flexible I/O & Communication: Standard on this single-phase 220V VFD are 4 digital inputs, 1 analog input (V/I selectable), 1 relay output, and built-in RS485 Modbus VFD communication for easy system integration.
- Optimized Motor Matching:Â Features a motor parameter self-learning (auto-tune) function (P1-37) to precisely match the drive’s advanced control algorithm to your specific asynchronous motor, maximizing torque and efficiency.
