EV210-0055G-T4: High-Torque Compact 3-Phase 380V VFD | 5.5kW, 7.5HP
Why Choose This 5.5kW (7.5HP) 380V 3-Phase VFD?
This specific 5.5kW 380V VFD is the premier choice for OEM machine builders and industrial applications where high torque and panel space are both non-negotiable.
Maximum Power in a Compact Frame: The EV210-0055G-T4 delivers a full 7.5HP (5.5kW) of power in an 87mm chassis. This is significantly smaller than the 112mm width of the general-purpose EV510A, making it ideal for high-density control cabinets.
Superior Low-Speed Torque for Heavy Loads: This drive provides 150% torque at 0.25Hz. This superior low-speed performance is critical for reliably starting heavy constant-torque loads like industrial mixers, extruders, and compressors, outperforming standard drives rated at 0.5Hz.
Reliable & Cost-Effective Automation: With its focused I/O, built-in PID, and standard Modbus, this drive provides the essential features for smart, reliable control without the cost and footprint of a larger, more complex inverter.
Typical Application Fields
Extruders & Industrial Mixers
A perfect match for constant-torque loads like plastic extruders or industrial mixers, which demand high starting torque and robust overload protection to handle viscous materials.

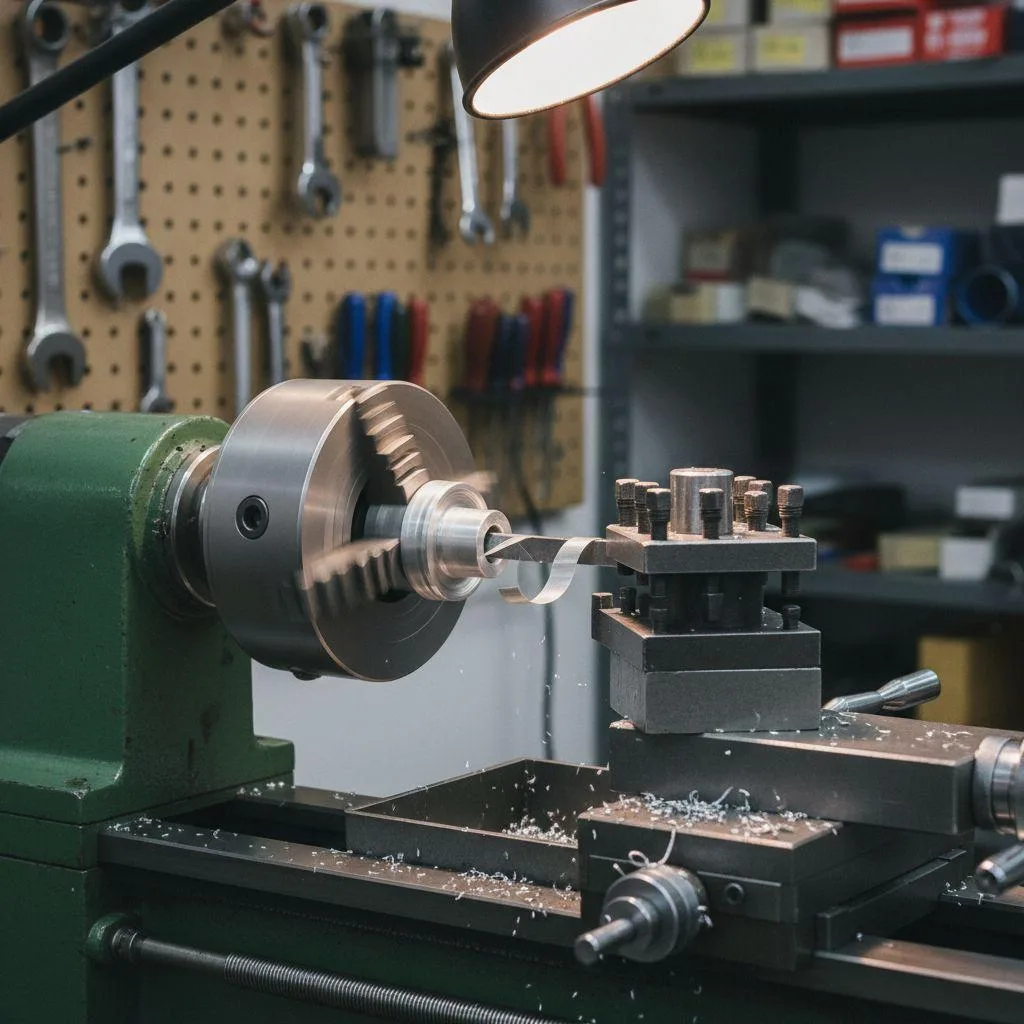

Machine Tools
Ideal as a compact machine tool VFD for 5.5kW (7.5HP) grinders, lathes, and milling machines on a 380V system , providing the high starting torque needed for cutting operations.

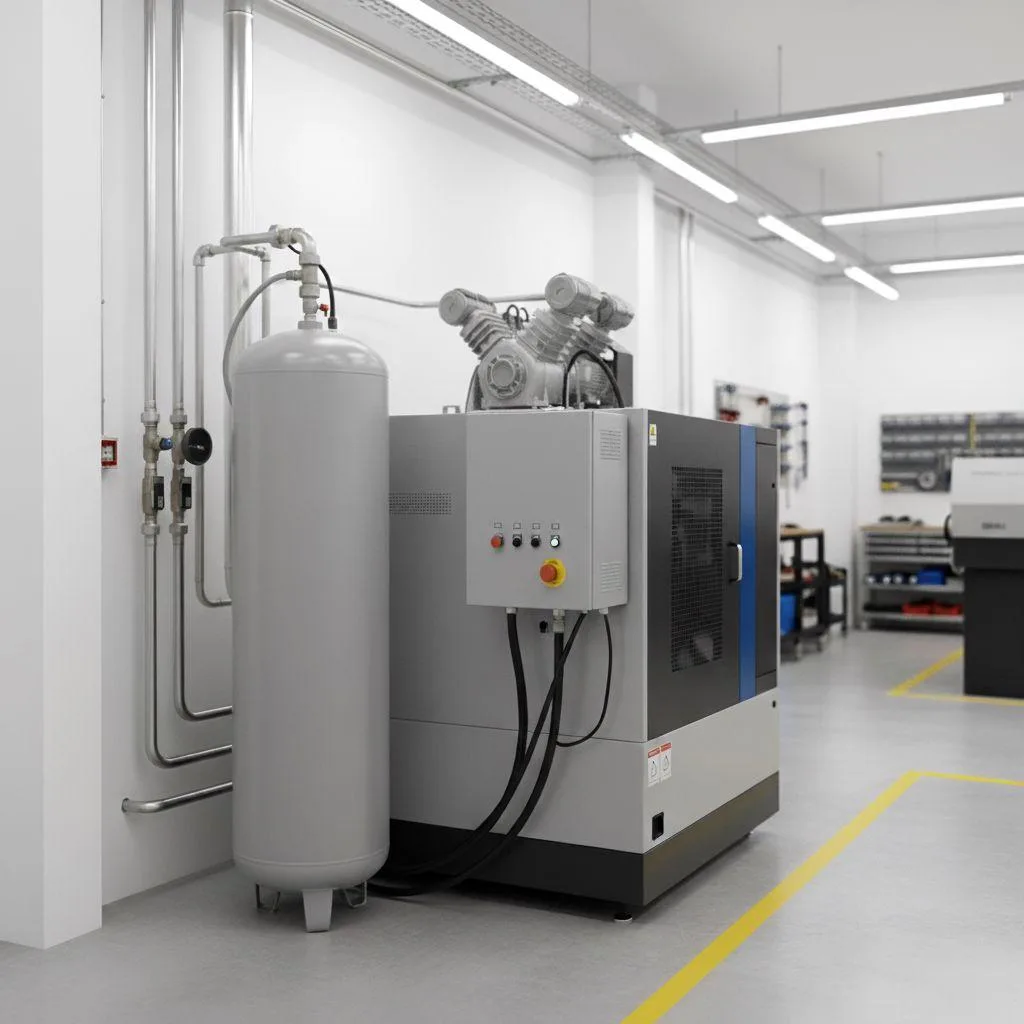

Air Compressors
A high-performance solution for 5.5kW (7.5HP) air compressors, using its high starting torque and overload capacity to manage demanding start-stop cycles.
Control Characteristics
Control Mode | High-Performance Current Vector Control , Sensorless Vector Control (SVC), V/F Control |
|---|---|
Highest Frequency | Vector Control: 0~500Hz; V/F Control: 0~500Hz |
Carrier Frequency | 0.5KHz ~ 16.0KHz (Adjustable, for low noise operation) |
Speed Tracking | Features “speed tracking speed restart function” |
DC Braking | Start Frequency: 0.00 ~ Max Freq; Braking Time: 0.0 ~ 100.0s |
Accel/Decel Time | 0.0s ~ 6500.0s |
I/O Specifications
Analog Input | 1 channel (0~10V / 0~20mA) |
|---|---|
Analog Output | 1 channel (0~10V / 0~20mA) |
Digital Output | 1 Programmable Relay Output (TA, TC) |
Communication | Standard RS-485 (Modbus) |
Operating Environment
Installation Site | Indoors, no direct sunlight, no dust, corrosive gases, etc. |
|---|---|
Altitude | Below 1000 meters |
Ambient Temperature | -10°C to +40°C |
Humidity | <95%RH, no condensation |
Structural Dimensions
Dimensions (W x D x H) | 87 x 127 x 183 mm |
|---|---|
Installation Size (A x B) | 78.0 x 172.5 mm |
Installation Hole | φ2.3 |
Quality Assurance
This product is developed and manufactured by Nanjing Oulu Electric Corp., Ltd. As a national high-tech enterprise focusing on industrial automation and new energy, we have an experienced R&D team and advanced production facilities, dedicated to providing high-quality, reliable products and solutions to customers worldwide.
Frequently Asked Questions (FAQ)
What is the main difference between the EV210-0055G-T4 and the EV210-0022G-S2?
The key difference is the input power. The T4 model is for Three-Phase 380V industrial power. The S2 model is for Single-Phase 220V power, typically used to run 3-phase motors where only single-phase 220V is available.
How does this 5.5kW VFD compare to the EV510A-0055G-T4?
The EV210 is the specialist for compact spaces and low-speed torque. It is significantly narrower (87mm wide) than the 112mm EV510A and offers superior starting torque (150% at 0.25Hz) compared to the EV510A’s 0.5Hz. The EV510A offers more I/O terminals (7 DI vs 4 DI) for more complex general-purpose applications.
What is the output current of the EV210-0055G-T4?
The rated output current for this model is 13.0 Amps, designed to match a 5.5kW (7.5HP) 380V motor.
Can I use this VFD for a hard-starting load like an extruder or industrial mixer?
Yes. This drive is ideal for such applications. Its advanced sensorless vector control produces 150% of the motor’s rated torque at just 0.25Hz (a near-standstill) , providing the power needed to start constant-torque loads smoothly.
Quick Start Guide (How-To)
Warning: The following steps are a basic guide only. All electrical work must be performed by qualified professional personnel. Before any wiring, ensure the main power is completely disconnected and wait at least 10 minutes for the internal capacitors of the VFD to fully discharge.
Step 1: Installation
Mount the inverter vertically on a sturdy, non-flammable surface, such as a metal mounting plate inside a control cabinet. Ensure there is sufficient clearance (at least 100mm) for ventilation. This drive’s 87mm width allows for compact industrial installations.
Step 2: Main Circuit Wiring
Connect the Three-Phase 380V AC power lines to the inverter’s input terminals R, S, and T (L1, L2, L3). Connect the three wires of the three-phase asynchronous motor to the inverter’s output terminals U, V, and W. Securely connect the ground wire to the inverter’s PE (Protective Earth) terminal.
Step 3: Control Circuit Wiring (for Basic Start/Stop)
Connect one end of an external switch (or button) to the digital input terminal X1. Connect the other end of the switch to the common terminal COM. Set parameter P0-02 (Command source selection) to “1” (Terminal command channel). Set parameter P4-00 (X1 function selection) to “1” (Forward run).
Step 4: Motor Parameter Setting & Auto-tuning
Upon first power-up, accurately enter the following parameters from your motor’s nameplate :
P1-01: Motor Rated Power (set to 5.5kW)
P1-02: Motor Rated Voltage (set to 380V)
P1-03: Motor Rated Current (e.g., 12.5A, use your motor’s value)
P1-04: Motor Rated Frequency
P1-05: Motor Rated Speed. For optimal vector control performance, perform a motor auto-tune. Set parameter P1-37 (Motor auto-tuning method) to “2” (dynamic) or “3” (static) and start the inverter.
Step 5: Test Run
After confirming all settings, turn on the main power. Close the external switch (X1 to COM). The motor should start. Open the switch, and the motor will stop.
Core Features & Advantages
Exceptional Starting Torque: Employs advanced sensorless vector control (SVC) to generate 150% rated torque at an ultra-low 0.25Hz, ensuring reliable, powerful startups for high-inertia or heavy constant-torque loads.
Power-Dense 87mm Chassis: Delivers a full 5.5kW (7.5HP) of vector control power from a compact 87mm-wide industrial housing, saving critical DIN rail space in crowded control cabinets.
Heavy-Duty Overload Capacity: Designed for G-type loads, this 5.5kW 380V VFD endures 150% of its 13.0A rated current for 60 seconds and 180% for 3 seconds, handling tough industrial cycles.
Built-in Process Control: Features an integrated PID controller for standalone automation of pressure, flow, or tension loops, plus 16-segment multi-speed control for programmed sequences.
Essential Industrial Connectivity: Standard with 4 digital inputs, 1 analog input (V/I selectable), 1 relay output, and RS-485 Modbus for straightforward integration into existing automation systems.
Motor Parameter Auto-Tuning: A dedicated self-learning function (P1-37) accurately measures motor parameters to optimize the vector control algorithm for your specific 5.5kW motor.
