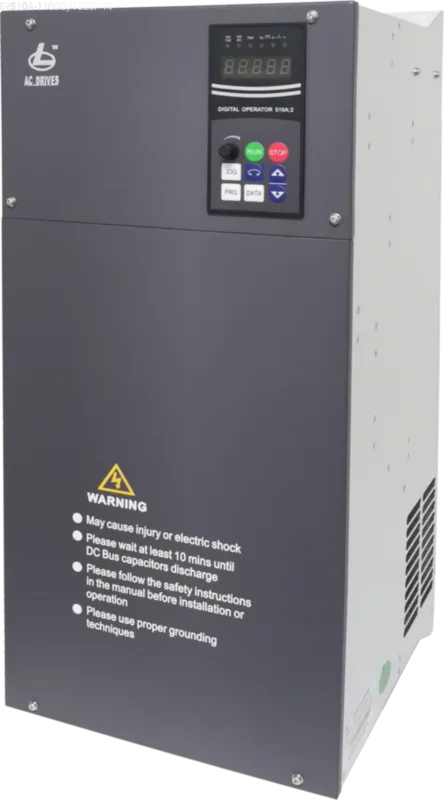

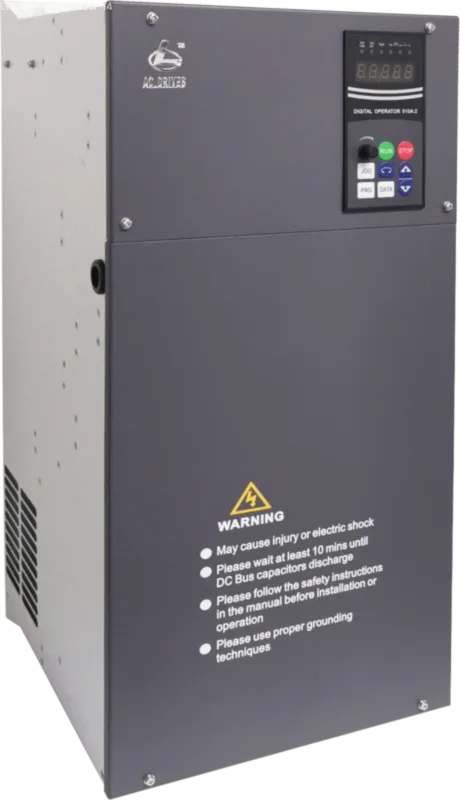

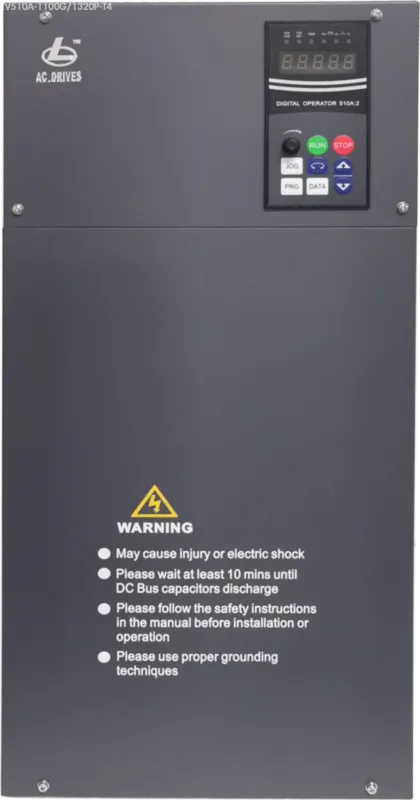

EV510A-1100G/1320P-T4 Dual Rated Vector VFD | 110kW(150HP) / 132kW(175HP) 380V
Parameter | G-Type: 0037G | P-Type: 0055P |
|---|---|---|
Motor Power | 3.7 kW / 5 HP (Constant Torque) | 5.5 kW / 7.5 HP (Variable Torque) |
Output Current | 9.0 A | 9.0 A |
Rated Input Current | 10.5 A | 10.5 A |
Power Capacity | 5.9 kVA | 5.9 kVA |
Input Power | Three-Phase 380V (±15%) | Three-Phase 380V (±15%) |
EV510A-1100G/1320P-T4: A High-Capacity VFD for Power, Precision, and Reliability
The EV510A-1100G/1320P-T4 is a high-performance vector Variable Frequency Drive (VFD) engineered to meet diverse and demanding applications in industrial automation. The defining advantage of this AC drive is its G/P Dual-Rated capability, which allows a single unit to be expertly configured for two different operational modes :  Â
- G-Type (Constant Torque): Rated for 110kW (approx. 150 HP) “General” (G-type) loads, such as plastic extruders, rolling mills, or heavy-duty conveyors. This mode is defined by its high starting torque and robust overload capacity.  Â
- P-Type (Variable Torque): Rated for 132kW (approx. 175 HP) “Pump or fans” (P-type) loads. This mode is optimized for energy efficiency in applications like centrifugal pumps and large-scale ventilation.  Â
This intelligent dual-rating streamlines inventory for system integrators and provides a standardized, high-performance control platform. As an enhanced version of the EV510 series, the EV510A is “smaller in size, more compact in structure… and more stable in performance”. It utilizes a “high-performance current vector control” algorithm for outstanding precision and integrates essential reliability features like “Instantaneous stop not stop” (power loss ride-through) and a “Quick current-limit function” to maximize system uptime.
Why Choose the EV510A-1100G/1320P-T4?
In the 110-132kW power class, the EV510A-1100G/1320P-T4 provides an intelligent combination of power, precision, and value.
- Strategic Power Flexibility (Dual-Rated): The G/P dual-rating is this drive’s most intelligent feature. It eliminates the need to source and stock two separate AC drives for a 110kW heavy-duty machine and a 132kW fan. The EV510A-1100G/1320P-T4 handles both, reducing inventory costs and simplifying procurement.
- Engineered for Extreme Uptime: For critical processes, reliability is paramount. The “Instantaneous stop not stop” function provides essential ride-through for brief power sags, while the “Quick Current-limit” actively prevents nuisance trips from load shocks, keeping your operation running.
- A Compact High-Power Solution: As the upgraded EV510A version, this drive is “smaller in size, more compact in structure, and more stable in performance”. This saves valuable cabinet real estate and contributes to a lower Total Cost of Ownership (TCO) through enhanced reliability.  Â
- Integrated Intelligence: This is more than a simple motor spinner. With powerful Sensorless Vector Control (SVC) for high-torque tasks and a “Built-in PID” controller for process loops, this single drive can manage a wide range of sophisticated automation tasks without needing an external PLC.
Typical Application Fields

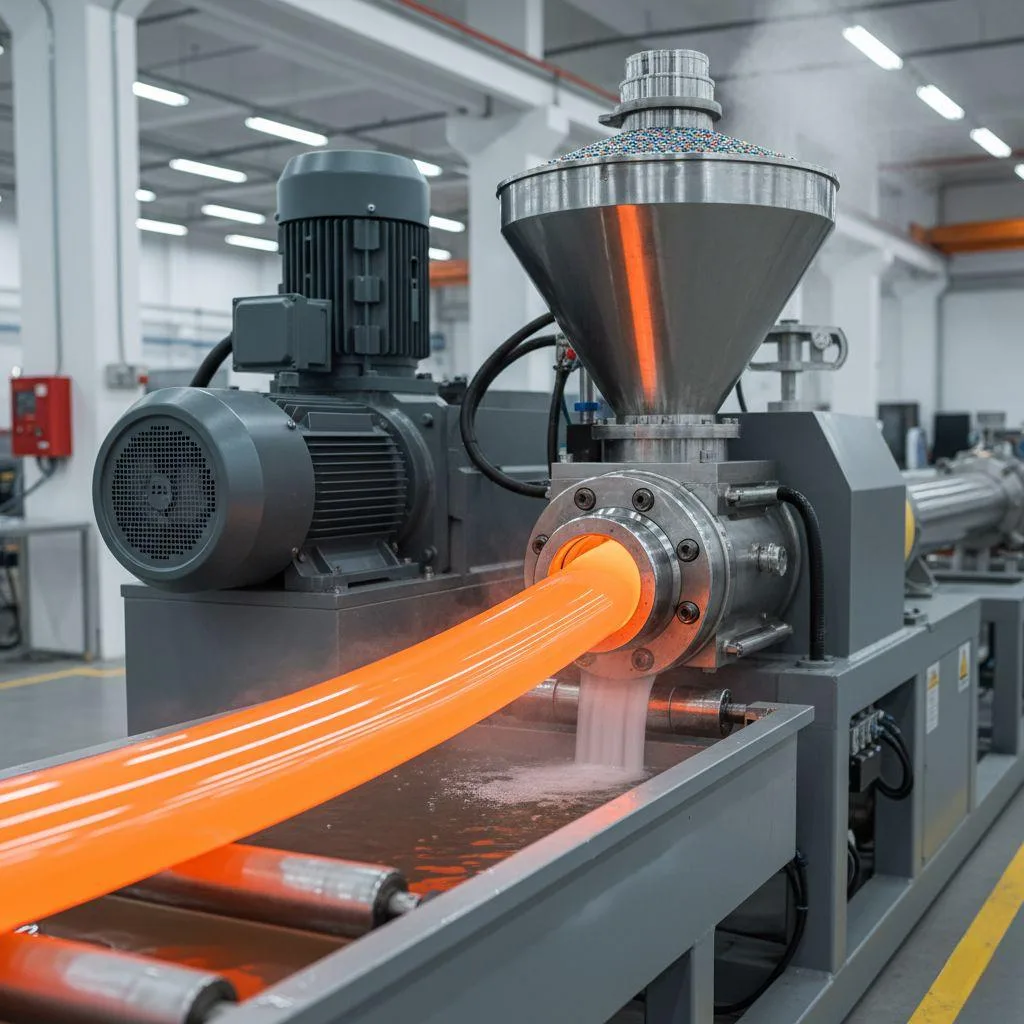

Large-Scale Plastic Extruders
Plastic extruders demand high, constant torque to turn the screw and melt plastic. The 110kW G-Type rating with SVC provides stable speed control, which is critical for uniform product diameter and quality.
Large-Scale Industrial Fans
Perfect for 132kW (175 HP) large industrial fans, blowers, and HVAC systems. The built-in PID reads duct pressure to precisely match fan speed to building demand, dramatically reducing energy consumption.
Wastewater Treatment Blowers
Powers 132kW (175 HP) aeration blowers. The P-Type mode offers significant energy savings, while the PID control can be used to maintain precise dissolved oxygen levels in the treatment basins.
Control Characteristics
Parameter | G-Type: 1100G | P-Type:1320P |
|---|---|---|
Control Mode | V/F Control, Open-loop Vector (SVC), Closed-loop Vector (FVC) | V/F Control, Open-loop Vector (SVC), Closed-loop Vector (FVC) |
Overload Capacity | 150% Rated Current 60s; 180% Rated Current 3s | 120% Rated Current 60s; 150% Rated Current 3s |
Starting Torque (SVC) | 0.5Hz / 150% | 0.5Hz / 100% |
Speed Range (FVC) | 1:1000 | 1:1000 |
Steady Speed Precision (FVC) | ±0.02% | ±0.02% |
Digital Inputs (DI) | 7 channels (1 @ 100kHz) | 7 channels (1 @ 100kHz) |
Analog Inputs (AI) | 2 channels (AI1: 0-10V, AI2: 0-10V/0-20mA) | 2 channels (AI1: 0-10V, AI2: 0-10V/0-20mA) |
Structural Dimensions
Dimensions (W x D x H) | 278 x 310 x 630 mm |
|---|---|
Installation Size (A x B) | 200 x 614 mm |
Installation Hole | φ9 |
Weight | 39 kg |
Quality Assurance
This product is developed and manufactured by Nanjing Oulu Electric Corp., Ltd. As a national high-tech enterprise focusing on industrial automation and new energy, we have an experienced R&D team and advanced production facilities, dedicated to providing high-quality, reliable products and solutions to customers worldwide.
Frequently Asked Questions (FAQ)
Q: What is the G/P Dual-Rating on the EV510A-1100G/1320P-T4?Â
A: This specifies the drive’s dual-rating, selectable via parameter P9-76. G-Type (General) is rated for 110kW Constant Torque applications (like extruders) and provides a high overload capacity (150% for 60s). P-Type (Pump) is rated for 132kW Variable Torque applications (like fans) with a standard overload (120% for 60s).  Â
Q: Is the EV510A an upgrade from the EV510?Â
A: Yes, the EV510A is the upgraded version. It is “smaller in size, more compact in structure, and more stable in performance”.  Â
Q: What is “Instantaneous stop not stop”?Â
A: This is a power loss ride-through function. If the power sags, the drive uses the motor’s feedback energy to “compensate for voltage-drop to keep running for a short time,” preventing a shutdown.
Q: Can this VFD control two different motors?Â
A: Yes, but not simultaneously. It has a “Multi-motor Switch” function. You can program two motor profiles (in parameter groups P1 and A2) and switch between them using a digital input or parameter P0-24.  Â
Q: What are the most common fault codes?Â
A: Common VFD fault codes include FU02 (Over current during acceleration), FU06 (Over voltage during deceleration), FU09 (Under voltage), and FU14 (Inverter Overheat).  Â
Q: Does this drive have a built-in PID controller?Â
A: Yes, it features a powerful “Built-in PID” controller. This allows it to receive an analog feedback signal (like a pressure or temperature sensor) and automatically manage a closed-loop process. The parameters are in group PA.  Â
Quick Start Guide (How-To)
This guide is intended to help you quickly set up and diagnose the EV510A Variable Frequency Drive based on the user manual.  Â
Guide 1: Quick Start – How to Perform Motor Auto-Tuning (Auto-Tune)
To achieve the best performance in Sensorless Vector Control (SVC) mode (when P0-01=0), you must first perform a motor auto-tune.  Â
- Input Motor Nameplate Data: In parameter group P1, enter the following values from your motor’s nameplate:  Â
- P1-01: Motor 1 Rated power (kW)
- P1-02: Motor 1 Rated voltage (V)
- P1-03: Motor 1 Rated current (A)
- P1-04: Motor 1 Rated frequency (Hz)
- P1-05: Motor 1 Rated speed (rpm)
- Select Auto-Tune Mode: Set parameter P1-37  to choose the tuning type:  Â
- 1: Asynchronous machine static self-learning
- 2: Asynchronous machine dynamic complete self-learning (Requires motor to be uncoupled)
- Execute Auto-Tune: After selecting the mode, press the RUN key to begin the auto-tuning process.  Â
Guide 2: Advanced Application – How to Set Up PID Control (for Constant Pressure)
Using the built-in PID (Group PA)  allows you to create a constant pressure pump system without an external PLC.  Â
- Set PID Feedback Source: Wire your 4-20mA pressure transducer to analog input AI2. Set the AI2 jumper on the control board to ‘I’ (current). Then, set parameter PA-02 = 1 (PID feedback source = AI2).  Â
- Set PID Target Value (Setpoint): Set PA-00 = 0 (PID reference source = PA-01). Then, enter your target pressure percentage in PA-01 (e.g., 50.0%).  Â
- Adjust PID Gains:
- PA-05 (Proportional Gain Kp1): Default is 20.0. Adjust to speed up or slow down the response.  Â
- PA-06 (Integral Time Ti1): Default is 2.00s. Adjust to eliminate steady-state error.  Â
- Set Feedback Loss Detection: To prevent the pump from running at max speed if the sensor wire breaks, set PID feedback loss detection.  Â
- PA-26: Set detection level (e.g., 10.0%).
- PA-27: Set detection time (e.g., 2.0s). This will trigger fault FU31 (PID feedback lost).  Â
Core Features & Advantages
The design of the EV510A-1100G/1320P-T4 combines advanced control technology, robust protection, and versatile I/O, with all specifications sourced directly from the official technical manuals.
Unmatched Reliability & Uptime
- Instantaneous Stop Not Stop (Ride-Through): A critical reliability function. During a momentary power loss, the drive uses the motor’s regenerative energy to “compensate for voltage drop to keep running for a short time,” preventing a costly shutdown.
- Quick Current-limit Function: Automatically “Reduce over current error on max extent” to protect the inverter from sudden load shocks and minimise over-current faults, ensuring continuous operation.
- Heavy-Duty Overload Capacity: Provides optimised overload protection for both G-Type and P-Type loads :
- G-Type (110kW): 150% of rated current for 60 seconds; 180% for 3 seconds.
- P-Type (132kW): 120% of rated current for 60 seconds; 150% for 3 seconds.
Advanced Control & Vector Performance
- Versatile Control Modes: Supports V/F control, Sensorless Vector Control (SVC), and high-precision Closed-loop vector control (FVC) with an optional PG card.
- Exceptional Starting Torque: The advanced vector algorithm delivers powerful torque output at low frequencies.
- G-Type (SVC): Achieves 150% of rated torque at just 0.5Hz.
- G-Type (FVC): Achieves 180% of rated torque at 0Hz.
- P-Type (SVC): Achieves 100% of rated torque at 0.5Hz.
- High Control Accuracy: In Closed-loop vector control (FVC) mode, the speed range reaches 1:1000 with a steady-speed precision of ±0.02%. In Open-loop vector control (SVC) mode, the speed range is 1:100 with a precision of ±0.5%.
- Wide Output Frequency: Supports an output frequency range of 0~500Hz in both vector and V/F control modes.
Flexible & Comprehensive Integration
- Comprehensive I/O: Features a full suite of programmable I/O for complex automation.
- 7 programmable Digital Inputs (DI): one of which supports up to 100KHz high-speed pulse input.
- 2 programmable Analog Inputs (AI): AI1 (0~10V) and AI2 (0~10V or 0~20mA).
- 2 Relay Outputs: (TA/TB/TC and RA/RC).
- 2 programmable Analogue Outputs (AO): Both support 0~20mA or 0~10V output.
- Multi-Motor Switching: Capable of storing two independent motor parameter sets (in groups P1 and A2) and switching between them via a digital input, allowing one VFD to control two different motors.
- Built-in PID Controller: Includes a full-featured PID controller (Group PA) to “realise process control closed-loop system conveniently,” perfect for managing constant pressure or flow without an external PLC.
- Standard Communications: Equipped with RS-485 (Modbus) and supports CAN link buses for easy system integration.
