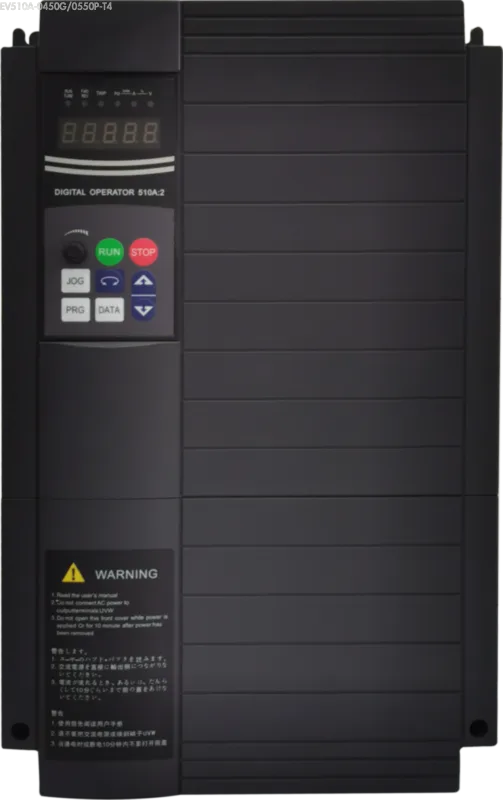

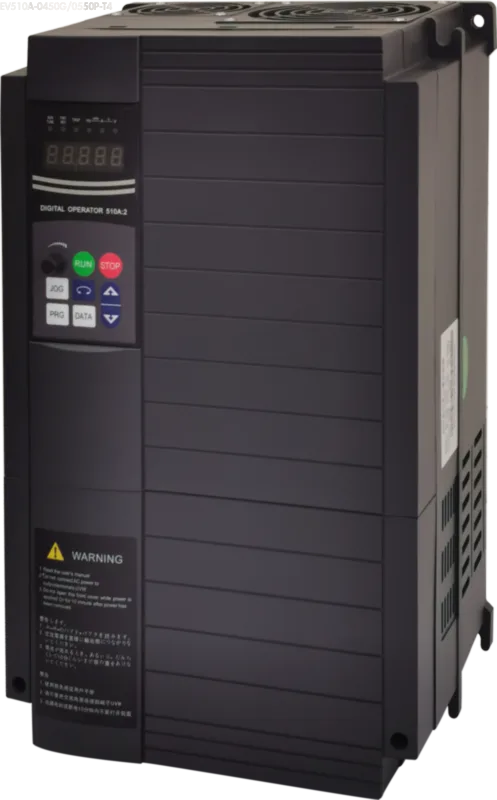

Three Phase,45kW(60HP),380V,EV510A-0550P-T4

Power:45kW

Phase:Three Phase

Rated Voltage:380V

Power Capacity:69.0kVA

Input Current:92.0A

Output Current:91.0A

Vector control with ±0.02% speed accuracy and 180% starting torque;

Multiple frequency sources with 16-speed settings and adjustable V/F curves;

Built-in voltage regulation and 180% overload protection;

Dual fieldbus connectivity (RS485/CANlink) with encoder support;

Intuitive operation featuring high-speed I/O and -10°C to +40°C operation;

[email protected]

ABOUT PRODUCT
INSTALLATION REFERENCE

The EV510A series high performance VFD Drives is the upgraded version of the EV510 series. It is smaller in size, more compact in structure, better in carrying capacity, and more stable in performance than the EV510 series. The EV510A-0450G/0550P-T4 model delivers reliable 380V Three Phase operation with 91.0A output current (45kW power capacity), featuring enhanced load capacity (150% overload for 60 seconds, 180% for 3 seconds) and superior stability (±0.5% speed control accuracy in SVC mode) ,perfectly suited for applications like Aerospace CNC Machining, Pharmaceutical Production Lines, etc. At the same time, it supports the display of the external panel of the network cable for enhanced monitoring.

Item		Specification
Basic Function	Highest Frequency	Vector control: 0~ 500Hz; V/F control: 0~ 500Hz
	Carrier Frequency	0.8kHz~12kHz; The carrier frequency can be automatically adjusted according to the temperature characteristics.
	Input Frequency Resolution	Digital setting:0.01Hz; Analog setting: maximum frequency×0.025%
	Control Mode	Open-loop vector(SVC) Closed-loop vector(FVC) V/F control
	Start Torque	G Type:0.5Hz/150%(SVC); OHz/180%(FVC) P Type:0.5Hz/100%
	Speed Range	1:100(SVC) 1:1000(FVC)
	Speed Control Accuracy	±0.5% (SVC) ±0.02%(FVC)
	Torque Control Accuracy	±5% (FVC)
	Overload Capacity	G Type:150% Rated current 60sec;180% Rated current 3sec;P Type:120% Rated current 60sec;150% Rated current 3sec
	Torque Boost	Automatic torque increase;Manual torque increase 0.1%~30.0%
	V/F Curve	Three types:linear type;multi-point type; the nth power of V/F curve(1.2 power,1.4 power,1.6 power,1.8 power,2 power)
	V/F Separation	Linear or S curve of ACC/DEC ways.Four types of ACC/DEC Time, ACC/DEC time range is 0.0~6500.0s
	ACC/DEC Curve	Two types:full separation,half of separation
	DC Brake	DC brake frequeney:0.00Hz~max frequency; Brake time:0.0s~36.0s; Brake action current:0.0%~100.0%
	JOG Control	JOG frequency range:0,00Hz~50.00Hz. JOG speed-up/down time:0.0s~6500.0s
	Simple PLC Multi-Stage Speed Running	Via bul-in PLC or control terminal can realze max 16 stage speed running
	Built-In PID	Can realize process control close-oop system conveniently
	Auto Adjust Voltage(AVR)	When grid voltage changes,can keep output voltage steadily automatically
	Overcurrent And Overvoltage Speed Control	During running,limit currentand voltage automatically,protect from tripping off frequently forovervoltage and overcurrent
	Quick Current-Limit Function	Reduce overcurrent error on max extent,protect inverter normal running
	Torque Limitation And Control	“Digger”feature,inverter could limit torque automatically,prevent overcurrent tripping off; close-oop vector can realize torque control
Personalization Function	Outstanding Perform	Using high-perform current vector control
	Instantaneous Stop Not Stop	During instant power-off,by motor feedbacking energy,inverter compensates voltage-drop to keep running for short time
	Timing Control	Timing control function:setting time range:0.0min-6500.0min
	Multi-Motorswitch	2 sets of motor parameter,can realize 2 motors switching control
	Multi-Threading Bus Support	Support2 fieldbus:RS485,CANlink
	Multi-Encoder Support	Support differential,open collector,rotary transformer
	Command Source	Control panel,control terminal,communication;can be switched by several modes
	Frequency Source	10 types of frequency sources:digital setting,analog voltage setting,analog current setting,pulse setting,communication setting,can be switched by several methods
	Auxiliary Frequency Sources	10 types of auxiliary frequency source,can realize auxiliary frequency trimming,frequency combining flexibly
Running Display And Keypad	Input Terminal	Standard: 7 digital input terminals,one of them support max 100KHz HS pulse input(apolegamy) 2 analog input terminals 2 supports 0~10V voltage input or 0~20mA current input
	Output Terminal	Standard: 1 high-speed pulse output terminal(optional open collector),support 0-100kHz pulse(apolegamy) 1 digit output terminal 2 relay output terminals 2 analog output terminals,both support 0~20mA current output or voltage output
	LED Display	Can display parameter
	Press-Keylocking And Function Selection	Realize press-key partial orful lacking,define part press-key function range,to avoid wrong operation
	Protection Function	Power-on motor short circuit test,output phase-loss protection,over-current protection,over-voltage protection, under-voltage protection,overheat protection,overload protection etc
	Optional Parts	Differential PG card,open collector PG card,rotary transformerPG card
Environment	Aplication Site	Indoor,without direct sunlight,no powder,corrosive gas,combustion air,oil dust,water steam,waterdrop or salt etc
	Altiude Level	Less than 1000m
	Environment Temperature	-10℃~+40℃(During40℃-50℃,please reduce capacity to use)
	Humidity	<95%RH,no water drop condensed
Optional Parts	Two Panel LED display	LED display;using RJ45 port to connect
