VFD Selection Guide: 6 Key Factors to Consider Before Buying

Introduction – Why Proper VFD Selection Matters

The precise selection of a VFD for a motor directly impacts the energy efficiency and reliability of industrial systems—incorrect selection can trigger three risks: insufficient power leading to current limiting operation (energy consumption increases by >20%), insufficient protection rating accelerating hardware aging (failure rate in dusty environments increases by 300%), and missing communication protocols forcing the addition of a gateway (project delays of 20 days + 30% cost increase). Conversely, adhering to the principles of how to choose a VFD can achieve energy savings of 15–30% and extend equipment lifespan by over three years. This VFD selection guide will outline how to choose a VFD from six key aspects.

Application Requirements

1.Load Type – Constant Torque vs Variable Torque

VFD Selection Guide The primary task is to identify load characteristics:

• Constant torque loads (such as conveyor belts/compressors): Select a variable frequency drive with an overload capacity ≥150% (full torque output at low frequencies)
• Variable torque loads (e.g., fans/pumps): Adapt to the square torque-speed curve (power ∝ speed³), and configure the energy-saving mode according to the VFD application guide recommendations

Case study: A mining conveyor belt (constant torque) mistakenly used a fan-specific VFD, resulting in motor temperature rise exceeding the standard by 35K

2. Operating Environment​

VFD Specifications Environmental Adaptability Must Be Declared:

3. Control Requirements​

VFD control functional level determines selection cost:

• Basic level: Start/stop/speed control → Standard control panel
• Advanced level: Process closed loop → Optional VFD with PID (temperature/pressure feedback)
• Intelligent level: System integration → Built-in VFD with Modbus (supports >32 nodes)

VFD Selection Guide​ Shows: 85% of pumping stations require PID constant pressure control (setpoint accuracy ±0.2 bar), while 100% of metallurgical production lines require Profinet communication.

Motor and Power Matching

1. Match Motor Voltage and Frequency​

VFD Selection Guide First, verify the motor voltage:

• Three-phase motor: Select a 380V/480V VFD for 3-phase motor (±10% tolerance)
• Single-phase motor: Select a VFD for single-phase motor that supports 230V input (output converted to three-phase)

The motor’s rated frequency (50/60 Hz) must match the VFD’s parameters. For example, a 60 Hz motor in the Middle East must not be paired with a VFD set to a maximum of 50 Hz. Case study: A 480V motor was incorrectly paired with a 400V VFD, causing capacitor bulging (18% overvoltage).

2. Determine Motor Horsepower and Full Load Amps​

VFD sizing Core formula:

Variable frequency drive power (hp) ≥ Motor power (hp) × Safety factor

Safety factor selection:

At the same time, the following conditions must be met: motor hp vs. VFD current matching (variable frequency drive rated current ≥ motor FLA × 1.1). A certain injection molding machine ignored FLA matching, resulting in IGBT overcurrent burnout (actual measured current exceeded 23%).

3. Check Starting Torque and Acceleration Requirements​

VFD start torque must cover the load start torque:

• Centrifugal fan: Start torque ≤ 30% of rated value → Select standard VFD torque control
• Crusher: Start torque ≥ 150% → Select vector control VFD (overload capacity 200%)

VFD acceleration time settings must match inertia. For high-inertia loads (J > 0.2 kg·m²), deceleration time must be ≥5 seconds (to prevent bus overvoltage). A ceramic press with an acceleration slope >100%/s caused mechanical resonance.

​Three key factors for matching verification​:

• Voltage/frequency: Coverage of nameplate parameters
• Power/current: Power margin of 20%-30%
• Start/brake: Torque dynamic response range

Input and Output Considerations

1. Input Power Configuration​

Single-phase input scenarios (such as farm irrigation) require a VFD for 230V, while industrial three-phase systems require a VFD for 380V/460V. Input voltage fluctuations of ±10% are permitted (e.g., a 480V system is compatible with 432-528V), and an input frequency range of 47-63Hz is the universal standard. A food factory mistakenly connected a 230V VFD to a 380V grid, causing the capacitor to explode.

2. Output Frequency and Voltage​

The VFD inverter must support an output range of 0-400 Hz (textile machinery requires >100 Hz) and be capable of switching between 50 Hz and 60 Hz (to prevent motor overheating). The VFD output voltage should match the motor’s rated voltage (e.g., a 230 V motor should be paired with a VFD inverter with an output range of 220-240 V). Additionally, the VFD frequency range must have a startup lower limit of ≤2 Hz (to meet the crawling requirements of heavy-duty equipment). ​VFD Selection Guide​ emphasizes: A filter must be installed if the output harmonic distortion rate is <5% (IEC 61000-3-12).

Selecting VFD Features Based on Use Case

1.Built-in Braking and Regeneration​

In scenarios requiring rapid shutdown (such as hoists), a VFD braking unit must be configured, with an internal brake tube conduction time of <10μs. For high inertia loads (J>5kg·m²), a regenerative VFD should be selected in conjunction with a VFD with braking resistor (power ≥ 15% of motor power).

2.Communications and Integration

For Industry 4.0 scenarios, choose a smart VFD:

• Basic interconnection → Modbus RTU (RS-485)
• Real-time control → Profinet IRT (jitter < 1μs)
• Cloud platform connection → VFD with Ethernet/MQTT protocol

vfd integration Cost comparison:

• Modbus: Additional cost ≈ 0
• Profinet: +12% purchase price, but savings on PLC communication modules

3. Monitoring and Protection Functions​

VFD Selection Guide Mandatory triple safety protection:

Industry-Specific VFD Applications

1. HVAC Systems​

VFD in HVAC enables variable speed control of fans/pumps (±0.5% temperature control accuracy). VFD for chillers achieves energy savings of 40-60% through cooling capacity regulation. HVAC VFD selection must match equipment scale:

VFD Selection Guide indicates: A 75 kW centrifugal chiller VFD retrofit saves an average of $50,000 in annual electricity costs.

2. Pump and Fan Systems​

VFD pump control: Constant pressure water supply (pressure fluctuation < 0.1 bar), VFD for exhaust fan: Automatic speed adjustment based on dust concentration (response < 1 s). System power rating:

VFD fans have been tested in power plants to reduce noise by 12dB(A). The VFD Selection Guide emphasizes that fans must be equipped with anti-surge curves.

3. Conveyors and Material Handling​

VFD for conveyors Achieves high starting torque (>180% sustained for 2 seconds) and millimeter-level stopping accuracy (±3mm). Selection requirements:

VFD start/stop control Supports emergency stop reverse braking (reverse torque ≥100%) to prevent material overturn risks. After a port conveyor belt renovation, start/stop impact was reduced by 92% .

Mistakes to Avoid When Selecting a VFD​

Ignoring the VFD Selection Guide will result in three types of costly VFD selection mistakes:

• Over-sizing (power redundancy > 40%) : 55kW fan paired with 90kW VFD (wasting $16,500+, 8% efficiency loss)
• Motor parameter mismatch: 60Hz motor incorrectly set with a 50Hz upper limit (winding overheating ΔT > 40K)
• Misjudgment of braking functionality​: Hoist not equipped with a braking resistor (free fall causing equipment damage, repair costs ≈70% of equipment purchase price)

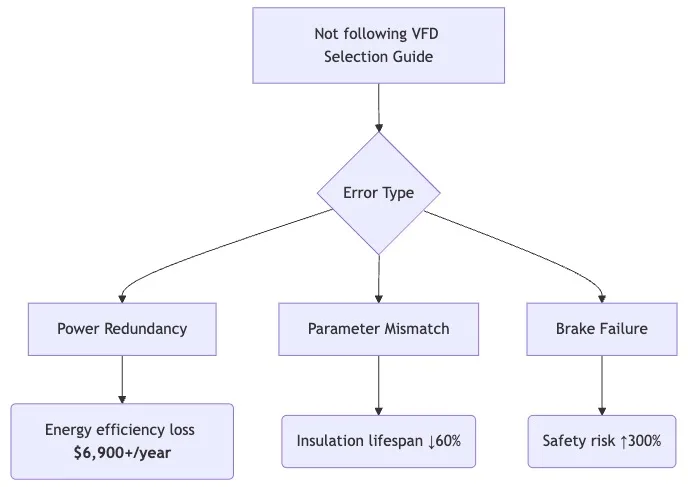

How not to choose a VFD​ Typical lesson chain:

Conclusion – Making the Right VFD Choice

The scientific approach to selecting a VFD involves following a three-step model: load characteristics, power matching, and environmental adaptation. The core of this approach is to strike a balance between avoiding excessive redundancy and insufficient capacity. Effective use of VFD calculator tools can automatically verify motor parameters and braking requirements, while also referring to manufacturer selection white papers (such as Rockwell’s PowerFlex Selection Guide). The value of this VFD selection guide lies in transforming complex electrical matching into an actionable decision tree: input load type, environmental parameters, and control objectives, and output the optimal VFD model and configuration list, eliminating selection blind spots.
