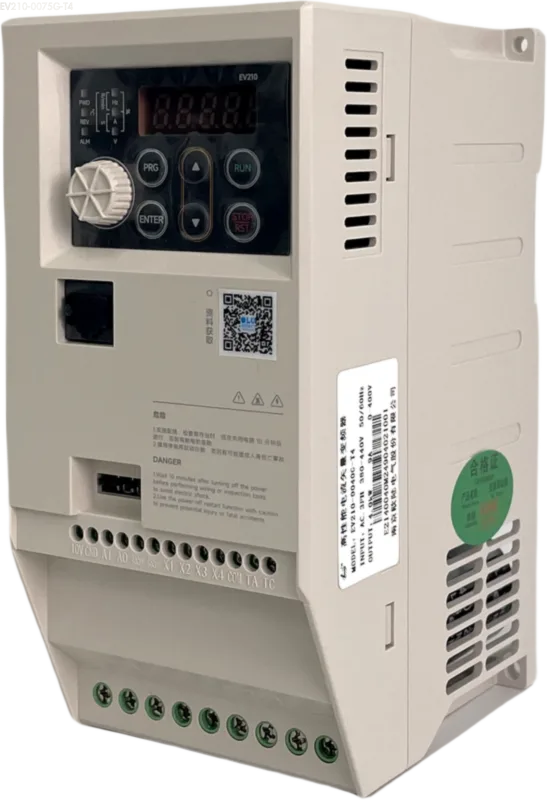

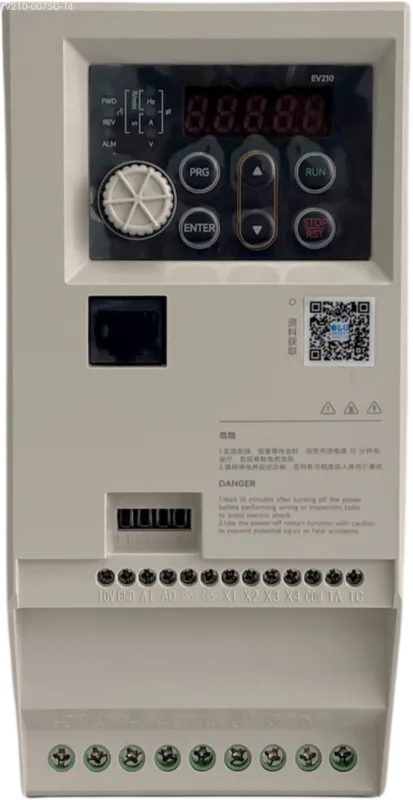

EV210-0075G-T4: High-Torque Compact 3-Phase 380V VFD | 7.5kW, 10HP
Why Choose This 7.5kW (10HP) 380V 3-Phase VFD?
This specific 7.5kW 380V VFD is the specialized solution for industrial applications that demand high performance, not just basic speed control.
-
Precision for 10HP Industrial Motors: The EV210-0075G-T4 is optimized for 7.5kW (10HP) 3-phase 380V motors. It provides advanced sensorless vector control , offering precision torque regulation far superior to basic V/F control.
-
Better Low-Speed Performance for Hard Starts: This model provides 150% torque at 0.25Hz, offering finer and more stable control for high-inertia starts (e.g., small grinders, crushers, or loaded mixers) than standard general-purpose drives that only promise 0.5Hz.
-
Space-Saving 118mm Industrial Chassis: Its compact 118mm width saves valuable DIN rail space in crowded industrial panels, allowing for higher-density machine designs compared to bulkier drives (like the 150mm-wide EV510A ).
-
Integrated & Cost-Effective: Use the built-in PID for simple, standalone fan or pump control, or connect it to your central PLC using the standard RS-485 Modbus. This integration reduces hardware cost and simplifies system design.
Typical Application Fields
-

Grinders & Crushers
A perfect match for hard-starting, high-impact loads. Its 150% at 0.25Hz torque can handle the initial impact and high inertia of stone crushers or metal grinders.
-

Textile Machinery
An excellent choice for larger textile applications, where the superior 0.25Hz torque provides stable, precise low-speed control for winders and spinning frames.
-

Fans and Pumps
A smart choice for 7.5kW fan and pump VFD applications in industrial processes. Use the built-in PID to maintain constant pressure or flow for significant energy savings.
Control Characteristics
|
Control Mode |
High-Performance Current Vector Control , Sensorless Vector Control (SVC), V/F Control |
|---|---|
|
Highest Frequency |
Vector Control: 0~500Hz; V/F Control: 0~500Hz |
|
Carrier Frequency |
0.5KHz ~ 16.0KHz (Adjustable, for low noise operation) |
|
Speed Tracking |
Features “speed tracking speed restart function” |
|
DC Braking |
Start Frequency: 0.00 ~ Max Freq; Braking Time: 0.0 ~ 100.0s |
|
Accel/Decel Time |
0.0s ~ 6500.0s |
I/O Specifications
|
Analog Input |
1 channel (0~10V / 0~20mA) |
|---|---|
|
Analog Output |
1 channel (0~10V / 0~20mA) |
|
Digital Output |
1 Programmable Relay Output (TA, TC) |
|
Communication |
Standard RS-485 (Modbus) |
Operating Environment
|
Installation Site |
Indoors, no direct sunlight, no dust, corrosive gases, etc. |
|---|---|
|
Altitude |
Below 1000 meters |
|
Ambient Temperature |
-10°C to +40°C |
|
Humidity |
<95%RH, no condensation |
Structural Dimensions
|
Dimensions (W x D x H) |
118 x 154 x 241 mm |
|---|---|
|
Installation Size (A x B) |
106.0 x 229.0 mm |
|
Installation Hole |
φ2.8 |
Quality Assurance
This product is developed and manufactured by Nanjing Oulu Electric Corp., Ltd. As a national high-tech enterprise focusing on industrial automation and new energy, we have an experienced R&D team and advanced production facilities, dedicated to providing high-quality, reliable products and solutions to customers worldwide.
Frequently Asked Questions (FAQ)
-
What is the main difference between the EV210-0075G-T4 and the EV210-0022G-S2?
The key difference is the input power. The T4 model is for Three-Phase 380V industrial power. The S2 model is for Single-Phase 220V power, typically used to run 3-phase motors where only 220V single-phase is available.
-
How does this 7.5kW VFD compare to the EV510A-0075G-T4?
The EV210 is the specialist for compact spaces and low-speed torque. It is significantly narrower (118mm wide) than the 150mm EV510A and offers superior starting torque (150% at 0.25Hz) compared to the EV510A’s 0.5Hz. The EV510A offers more I/O terminals (7 DI vs 4 DI) for more complex general-purpose applications.
-
What is the output current of the EV210-0075G-T4?
The rated output current for this model is 16.0 Amps, designed to match a 7.5kW (10HP) 380V motor.
-
Can I use this VFD for a hard-starting load like a grinder or crusher?
Yes. This drive is ideal for such applications. Its advanced sensorless vector control produces 150% of the motor’s rated torque at just 0.25Hz (a near-standstill), providing the power needed to start high-inertia loads smoothly.
Quick Start Guide (How-To)
Warning: The following steps are a basic guide only. All electrical work must be performed by qualified professional personnel. Before any wiring, ensure the main power is completely disconnected and wait at least 10 minutes for the internal capacitors of the VFD to fully discharge.
-
Step 1: Installation

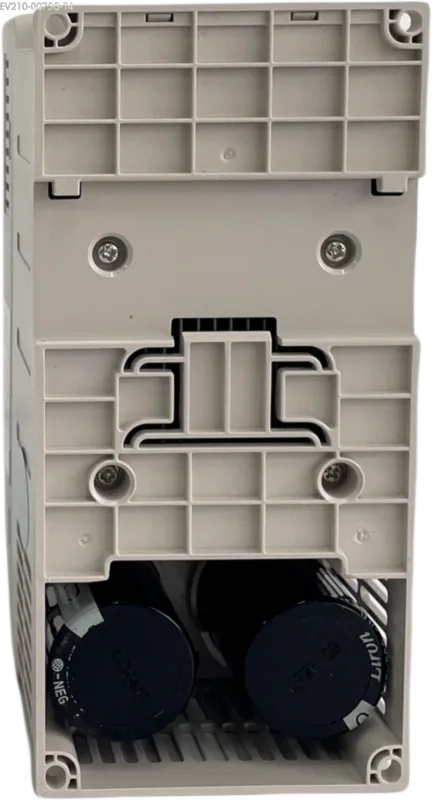

Mount the inverter vertically on a sturdy, non-flammable surface, such as a metal mounting plate inside a control cabinet. Ensure there is sufficient clearance (at least 100mm) for ventilation. This drive’s 118mm width allows for compact industrial installations.
-
Step 2: Main Circuit Wiring
Connect the Three-Phase 380V AC power lines to the inverter’s input terminals R, S, and T (L1, L2, L3). Connect the three wires of the three-phase asynchronous motor to the inverter’s output terminals U, V, and W. Securely connect the ground wire to the inverter’s PE (Protective Earth) terminal.
-
Step 3: Control Circuit Wiring (for Basic Start/Stop)
Connect one end of an external switch (or button) to the digital input terminal X1. Connect the other end of the switch to the common terminal COM. Set parameter P0-02 (Command source selection) to “1” (Terminal command channel). Set parameter P4-00 (X1 function selection) to “1” (Forward run).
-
Step 4: Motor Parameter Setting & Auto-tuning
Upon first power-up, accurately enter the following parameters from your motor’s nameplate :
-
P1-01: Motor Rated Power (set to 7.5kW)
-
P1-02: Motor Rated Voltage (set to 380V)
-
P1-03: Motor Rated Current (e.g., 15.0A, use your motor’s value)
-
P1-04: Motor Rated Frequency
-
P1-05: Motor Rated Speed. For optimal vector control performance, perform a motor auto-tune. Set parameter P1-37 (Motor auto-tuning method) to “2” (dynamic) or “3” (static) and start the inverter.
-
-
Step 5: Test Run
After confirming all settings, turn on the main power. Close the external switch (X1 to COM). The motor should start. Open the switch, and the motor will stop.
Core Features & Advantages
-
Superior Low-Speed Torque: Implements advanced sensorless vector control (SVC) to achieve 150% rated torque at just 0.25Hz. This provides more powerful and stable control for high-inertia startups (like grinders or crushers) than standard drives rated at 0.5Hz.
-
Compact 380V Industrial Design: With a width of only 118mm, this compact 380V VFD is ideal for saving panel space in industrial control cabinets, allowing for high-density machine designs.
-
Robust 7.5kW Overload Capacity: Built for tough G-type (general purpose) loads, this 7.5kW 380V VFD withstands 150% of rated current for 60 seconds and 180% of rated current for 3 seconds.
-
Integrated Automation Features: Includes a built-in PID controller for automating simple process control (like pumps and fans) and 16-segment multi-speed operation for complex programmed sequences.
-
Flexible Industrial I/O: Standard on this 3-phase 380V VFD are 4 digital inputs, 1 analog input (V/I selectable), 1 relay output, and built-in RS485 Modbus VFD communication for essential system integration.
-
Optimized Motor Matching: Features a motor parameter self-learning (auto-tune) function (P1-37) to precisely match the drive’s advanced control algorithm to your specific 7.5kW asynchronous motor, maximizing torque and efficiency.
|
