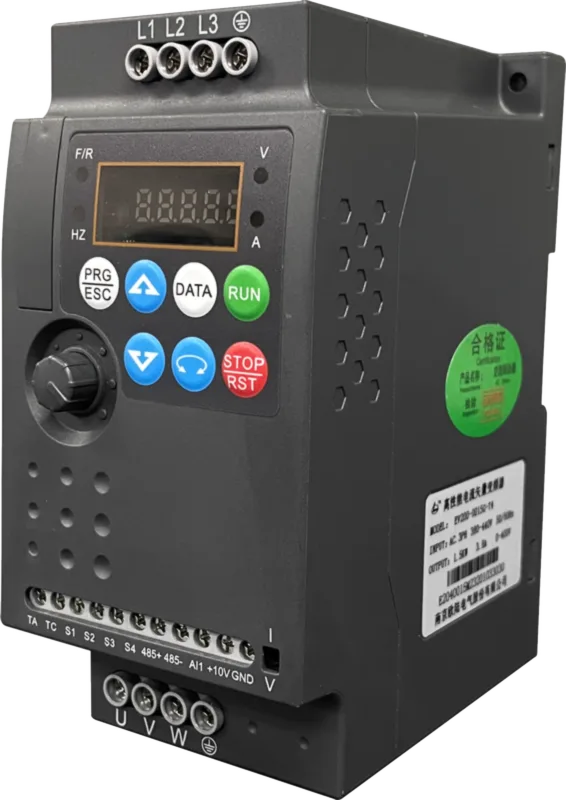

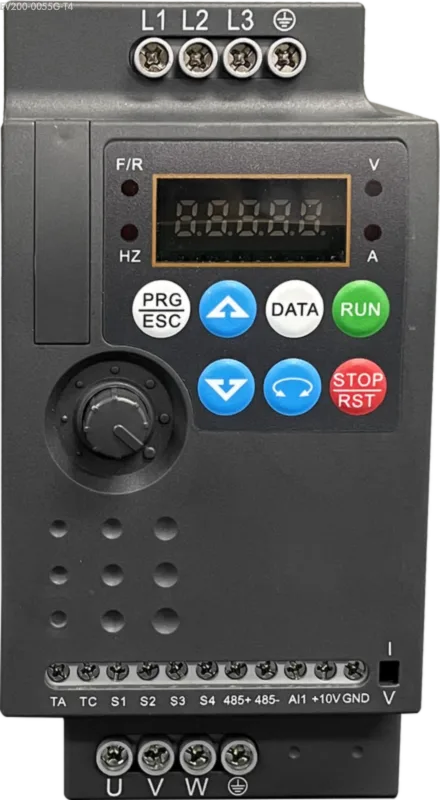

EV200-0055G-T4: 5.5kW (7.5HP) Industrial Vector AC Drive
Why Choose This 5.5 kW (7.5 HP) 3-Phase VFD?
-
Heavy Duty Performance: Rated for 150% overload for 60 seconds, this drive handles the current spikes typical of air compressors and mixers without tripping, providing reliable continuous operation.
-
Maximize Panel Real Estate: The slim “book-style” footprint allows you to upgrade to 7.5HP power without up-sizing your electrical cabinet, making it ideal for retrofits in tight spaces.
-
Energy Efficiency: For variable torque loads like fans and pumps, the VFD optimizes motor speed to match demand, offering potential energy savings of 30-60% compared to traditional throttling methods.
-
Precision Control: Whether driving a CNC spindle or a hydraulic pump, the vector control algorithm ensures stable speed under varying loads, improving product quality and machine precision.
-
Comprehensive Protection: Includes protection against Phase Loss, Overcurrent, Overvoltage, Overheat, and Motor Overload, safeguarding your valuable 7.5HP motor from electrical faults.
Typical Application Fields
-

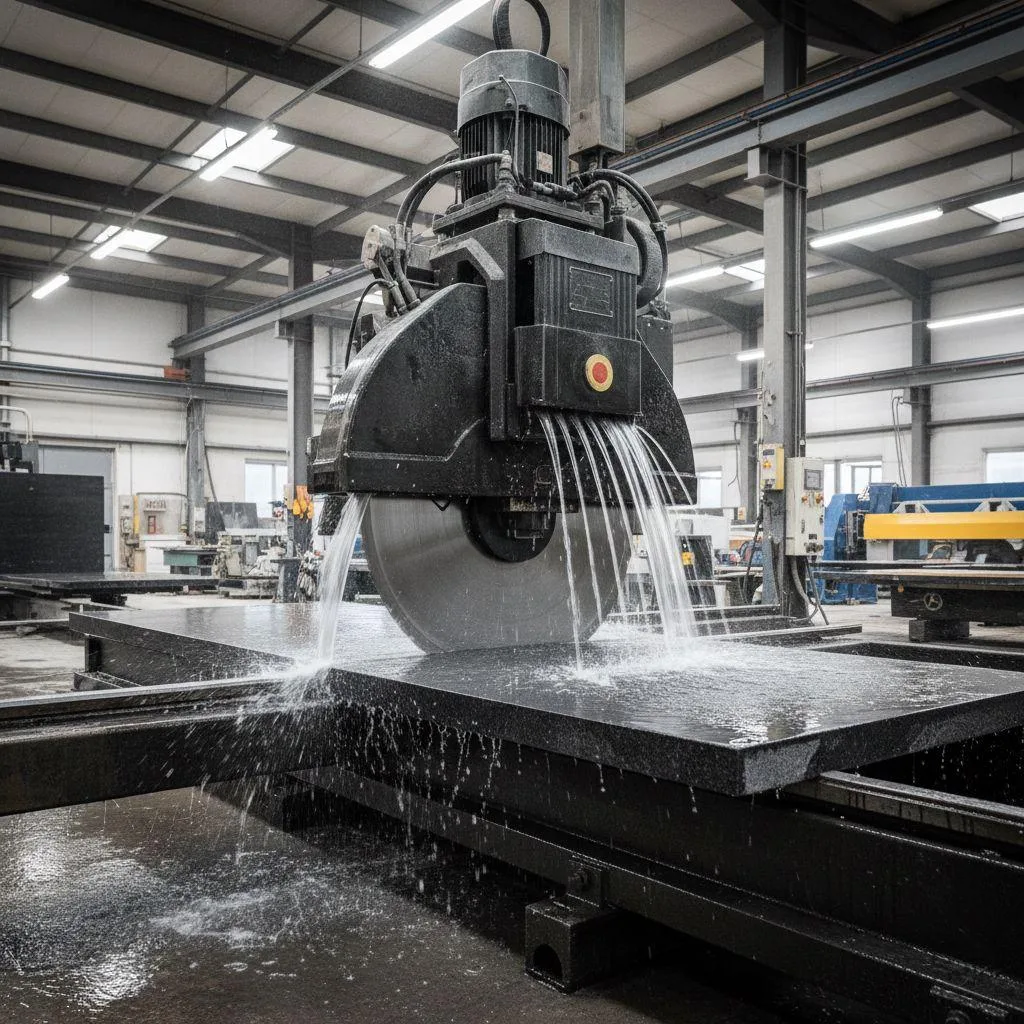

Stone Cutting Bridge Saws
The high starting torque and built-in braking are essential for driving the main 5.5kW saw motor, ensuring smooth cuts through granite and rapid blade stopping.
-

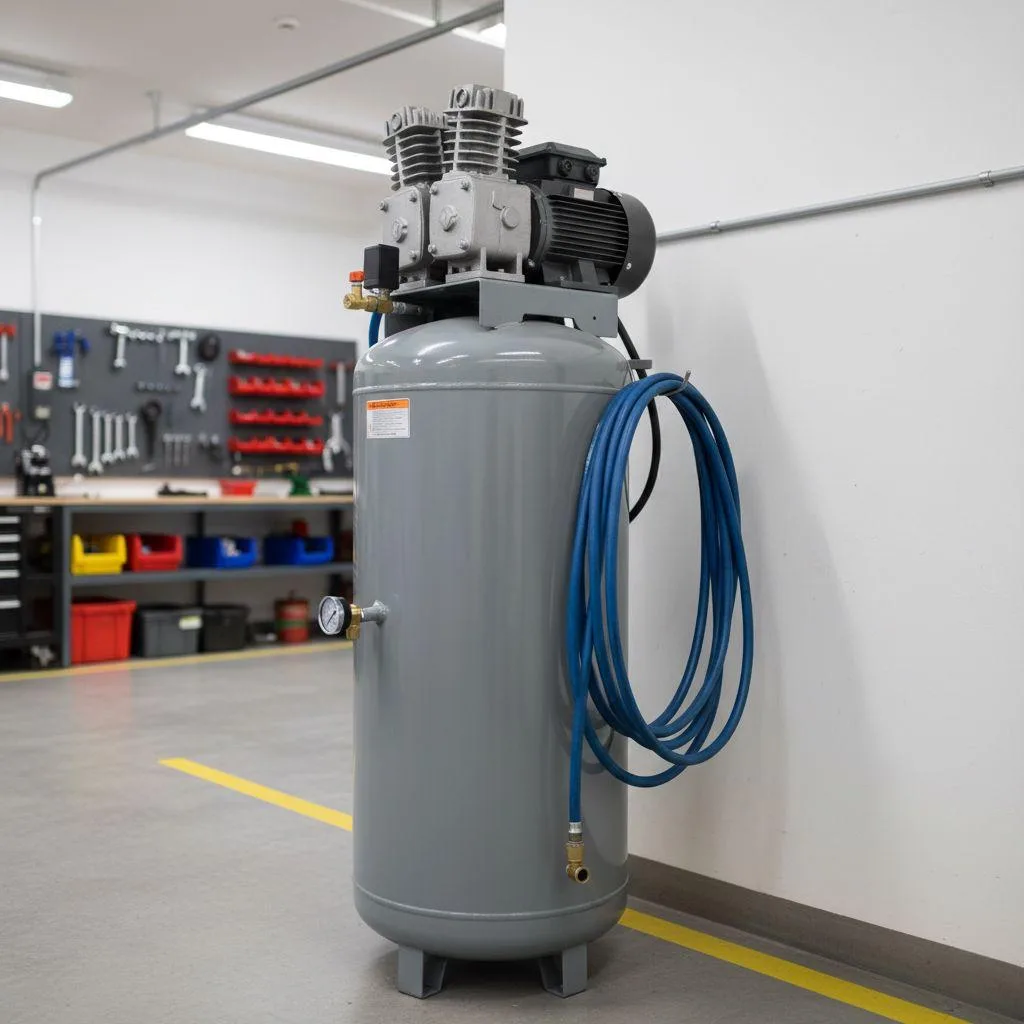

Air Compressors
Provides soft-starting for 7.5HP rotary screw or reciprocating compressors, eliminating high inrush currents and stabilizing system pressure via PID control.
-

Textile Machinery
Controls large winding machines and spinning frames, using the Wobble Frequency function to ensure uniform yarn spooling.
Control Characteristics
|
Control Mode |
without PG Vector(SVC), V/F control |
|---|---|
|
Highest Frequency |
Vector control: 0~500Hz; V/F control: 0~500Hz |
|
Start Torque |
G type: 0.5Hz/150% (SVC) |
|
Speed Range |
1:100 (SVC) |
|
Speed Control Accuracy |
±0.5% (SVC) |
|
Overload Capacity |
G type: 150% rated current 60s; 180% rated current 3s |
I/O Specifications
|
Digital Input |
4 digital input terminals |
|---|---|
|
Analog Input |
1 analog input terminal |
|
Relay Output |
1 relay output terminal |
|
Communication |
Supports Modbus, RS85 (Assumed RS485), CANopen, CANlink |
Operating Environment
|
Installation Site |
Indoors, no direct sunlight, no dust, corrosive gases, etc. |
|---|---|
|
Altitude |
Below 1000 meters |
|
Ambient Temperature |
-10°C to +40°C (derating required for 40~50°C) |
|
Humidity |
<95%RH, no condensation |
Structural Dimensions
|
Dimensions (W x D x H) |
85.5 x 116.4 x 180 mm |
|---|---|
|
Installation Size (A x B) |
73 x 168 mm |
|
Installation Hole |
Ф4.4 |
Quality Assurance
This product is developed and manufactured by Nanjing Oulu Electric Corp., Ltd. As a national high-tech enterprise focusing on industrial automation and new energy, we have an experienced R&D team and advanced production facilities, dedicated to providing high-quality, reliable products and solutions to customers worldwide.
Frequently Asked Questions (FAQ)
1. Do I need an external braking module for this 5.5kW VFD?
No. The EV200-0055G-T4 comes with a built-in braking unit. You do not need a separate chopper module. You only need to connect an external dynamic braking resistor to the PB and (+) terminals to enable fast braking for high-inertia loads like saws or centrifuges.
2. Can I run a 5.5kW motor on single-phase 220V with this drive?
No. This model (T4) requires a Three-Phase 380V input. It cannot step up single-phase 220V to 380V. If you only have single-phase power, you would need a specific single-phase input VFD (usually limited to lower horsepower) or a rotary phase converter before the drive.
3. What is the “Narrow Body” advantage?
The 85.5mm width is significantly slimmer than standard 7.5HP drives. This allows for side-by-side mounting with zero clearance, meaning you can fit more drives into a smaller, less expensive control cabinet. This is ideal for multi-motor machines like textile or packaging lines.
4. How do I set up PID control for a water pump?
Connect your pressure sensor (e.g., 4-20mA) to the AI1 terminal (ensure Jumper J4 is set to Current). Set P0-03=8 (PID Control). Set PA-01 to your desired pressure setpoint (as a %), and PA-02=0 (AI1 Feedback). The VFD will automatically adjust the 7.5HP pump speed to maintain constant pressure.
Quick Start Guide (How-To)
Warning: 380V is lethal. Disconnect the power and wait 10 minutes before wiring.
Step 1: Installation

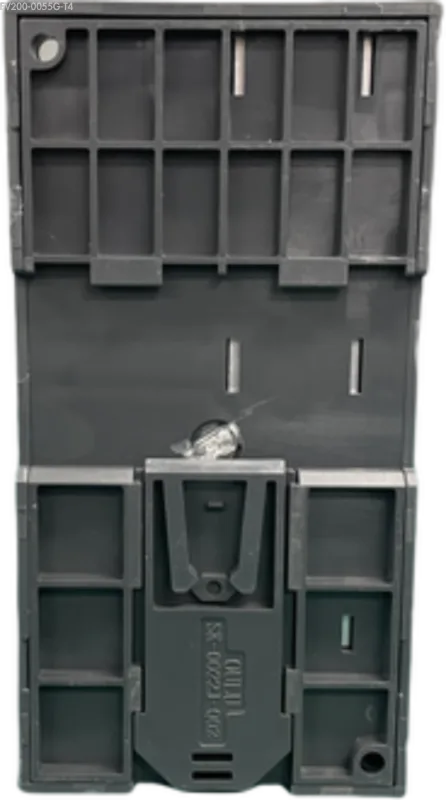

Mount the VFD vertically on a DIN rail or backplate. Ensure the cooling fans at the bottom are not blocked.
Step 2: Wiring
-
Input: Connect 3-Phase 380V supply to R, S, T.
-
Output: Connect the 7.5HP motor to U, V, W.
-
Braking (Optional): Connect braking resistor to PB and (+).
-
Ground: Connect PE to earth.
Step 3: Parameter Setup
Power on. Press PRG to enter the menu:
-
P1-01: Set to 5.5 (Motor Power).
-
P1-02: Set to 380 (Voltage).
-
P1-03: Set to 13.0 (Current – Verify on Motor Nameplate).
-
P1-04: Set to 50.00 (Frequency).
-
P1-05: Set to 1440 (RPM).
Step 4: Auto-Tuning
-
Set P0-01 = 0 (Vector Control).
-
Set P1-37 = 1 (Static Auto-tuning).
-
Press RUN. The drive will energise the motor to measure resistance.
Step 5: Operation
-
Set P0-02 = 1 (Terminal Control) for external switches or 0 for the Keypad.
-
Use the potentiometer or external signal to adjust speed.
Core Features & Advantages
-
Built-in Braking Unit: Unlike smaller drives that require external modules, the 5.5kW model integrates the braking chopper. You can directly connect a braking resistor to terminals PB and (+) for rapid deceleration of heavy loads like centrifuges or saw blades, improving safety and cycle times.
-
Ultra-Narrow High-Density Design: At just 85.5mm wide, this 7.5HP drive allows for high-density side-by-side installation. This critical space-saving feature enables engineers to fit more drives into standard control cabinets, reducing enclosure costs for multi-axis systems.
-
High-Torque Sensorless Vector Control (SVC): Delivers 150% starting torque at 0.5Hz, ensuring powerful, stall-free startups for heavy friction loads such as loaded conveyors or extruders.
-
Independent Air Duct Cooling: The vertical straight-through air duct isolates cooling air from the PCB. This protects sensitive electronics from conductive dust and oil mist found in textile mills, woodworking shops, and stone fabrication plants.
-
Robust 380V Grid Adaptability: Designed to handle industrial voltage fluctuations (380V ±15%) with built-in AVR (Automatic Voltage Regulation), ensuring consistent motor performance even on unstable power grids.
-
Advanced Process Control: Features a built-in PID controller for closed-loop pressure or flow regulation, and a Simple PLC for automating multi-step speed cycles (e.g., wash/spin cycles in laundry machines) without external PLCs.
|
