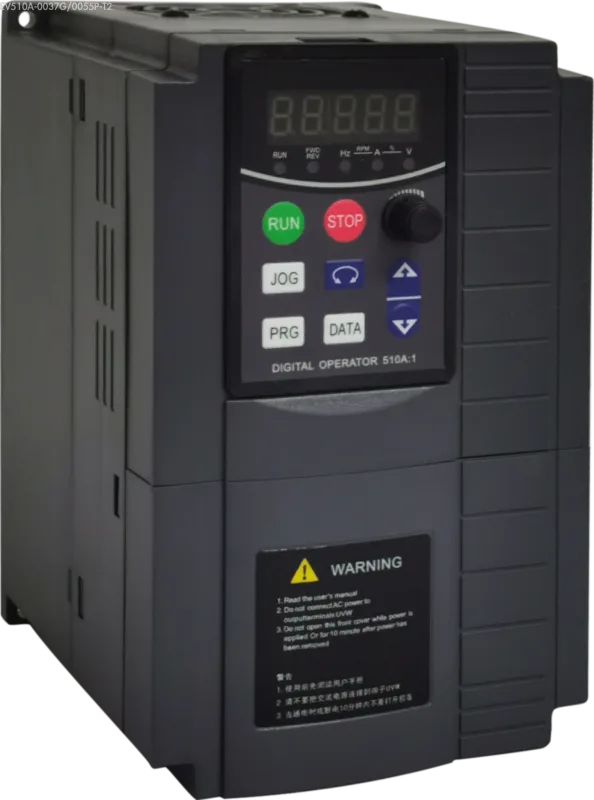

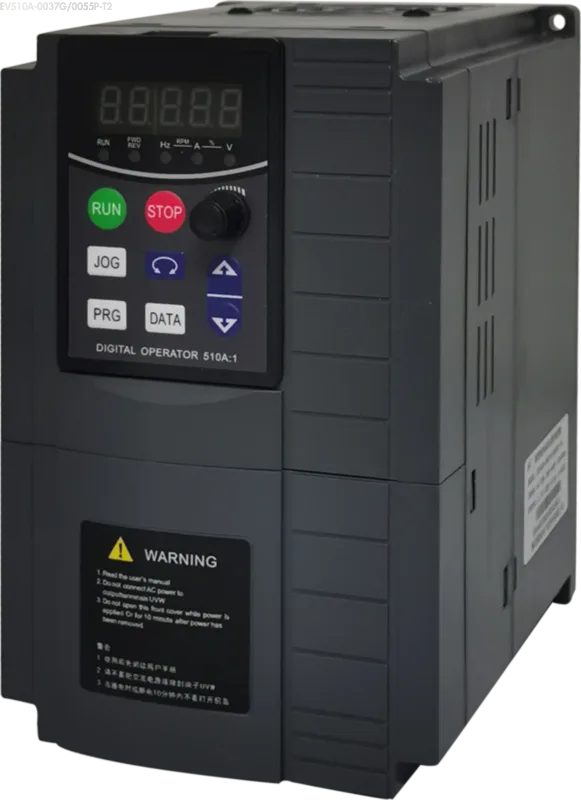

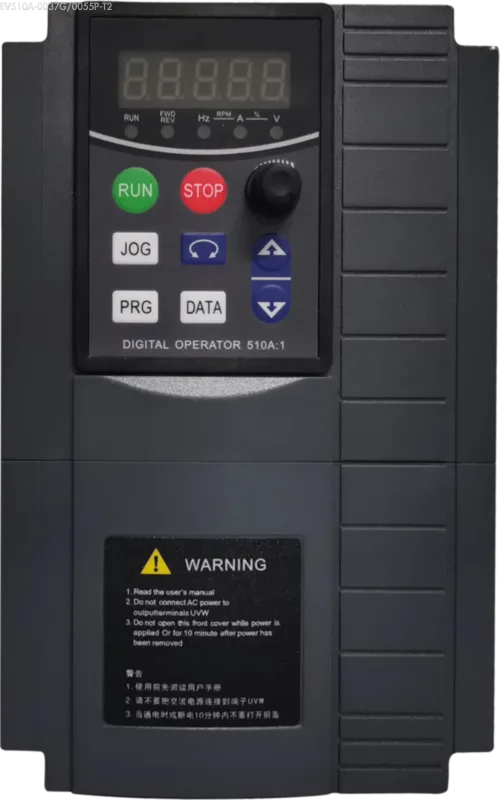

EV510A-0037G/0055P-T4 | 3.7kW G-Type / 5.5kW P-Type | 380V Vector Control VFD
Parameter | G-Type: 0037G | P-Type: 0055P |
|---|---|---|
Motor Power | 3.7 kW / 5 HP (Constant Torque) | 5.5 kW / 7.5 HP (Variable Torque) |
Output Current | 9.0 A | 9.0 A |
Rated Input Current | 10.5 A | 10.5 A |
Power Capacity | 5.9 kVA | 5.9 kVA |
Input Power | Three-Phase 380V (±15%) | Three-Phase 380V (±15%) |
EV510A-0037G/0055P-T4: Dual-Rated Design for Superior Performance & Reliability
The EV510A-0037G/0055P-T4 is a high-performance vector Variable Frequency Drive (VFD) engineered to meet the most diverse and demanding applications in industrial automation. The core advantage of this AC drive lies in its G/P Dual-Rated design, allowing a single unit to satisfy two distinct application profiles :
- G-Type (Constant Torque): Rated for 3.7kW (approx. 5 HP) “General” (G-type) loads, such as conveyors, machine tools, or crushers. These applications demand high starting torque and stable low-speed operation.
- P-Type (Variable Torque): Rated for 5.5kW (approx. 7.5 HP) “Pump or fans” (P-type) loads. These applications prioritize energy efficiency and smooth control of flow or airflow.
This dual capability makes the EV510A-0037G/0055P-T4 an ideal choice for OEM manufacturers and system integrators, simplifying inventory and standardizing the control platform across multiple applications.
As the upgraded version of the EV510 series, the EV510A features a “smaller in size, more compact in structure… and more stable in performance”. It employs an advanced “high-performance current vector control” algorithm, ensuring exceptional motor speed control accuracy. Critically, it integrates unique features designed to maximize production uptime, including “Instantaneous stop not stop” (ride-through) and a “Quick current-limit function”. These features make it not only powerful but exceptionally reliable, capable of handling grid fluctuations and sudden load impacts with ease.
Why Choose This 3.7kW(5HP) / 5.5kW(7.5HP) 380V Vector Control VFD?
Among the many AC drives on the market, the EV510A-0037G/0055P-T4 stands out with a unique combination of features that provide an exceptional value proposition.
- One VFD, Two Applications (Maximize Your ROI):The G/P Dual-Rated design is its most significant advantage. You no longer need to procure and stock two different VFDs for a 3.7kW machine tool and a 5.5kW fan. The EV510A-0037G/0055P-T4 handles both. This dramatically reduces your inventory costs, simplifies purchasing, and improves maintenance standardization.
- Designed for Maximum Uptime (Extreme Reliability):In continuous production, downtime is costly. The EV510A’s “Instantaneous stop not stop” function provides invaluable “ride-through” capability during unstable grid conditions, while the “Quick Current-limit” actively prevents trips from load shocks. Choosing the EV510A is choosing uninterrupted productivity.
- Compact Design, Upgraded Performance (Save Space & Cost):As the upgraded version of the EV510, the EV510A is “smaller in size, more compact in structure, and more stable in performance”. It not only saves valuable electrical cabinet space but also implies a lower failure rate and longer service life, reducing your Total Cost of Ownership (TCO).
- Powerful Control for Any Task (Versatile):Whether your application needs the high precision of FVC ($\pm$0.02% steady speed precision) or the powerful low-speed torque of SVC (150% starting torque at 0.5Hz) , the EV510A delivers. Combined with its rich I/O and “Built-in PID”, it is a motor controller that can handle nearly any mid-level automation task.
Typical Application Fields
HVAC (e.g., Air conditioning load)

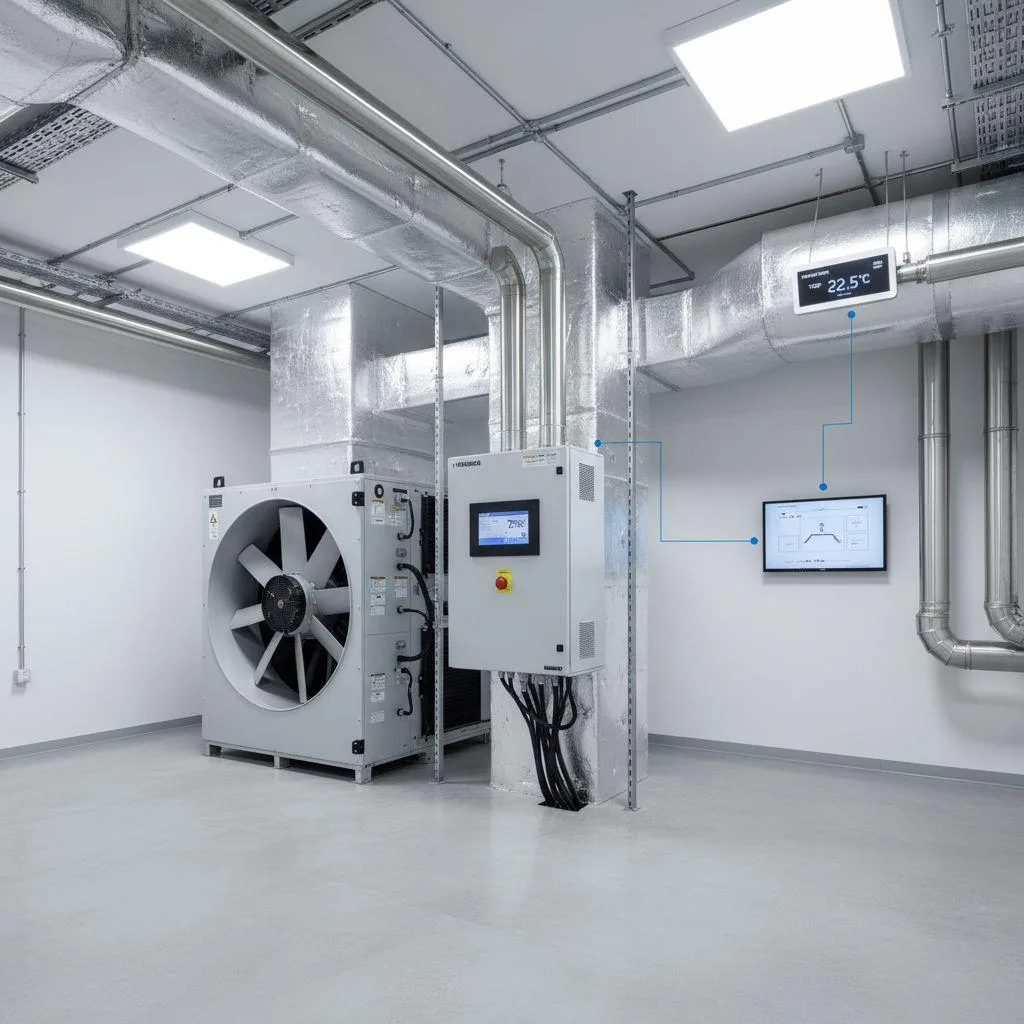

In HVAC, the EV510A can drive chilled water pumps and supply fans. It uses PID control [23, 23] to maintain a constant temperature or pressure differential, optimizing building comfort and energy efficiency.
Water Treatment(e.g., Sewage treatment)

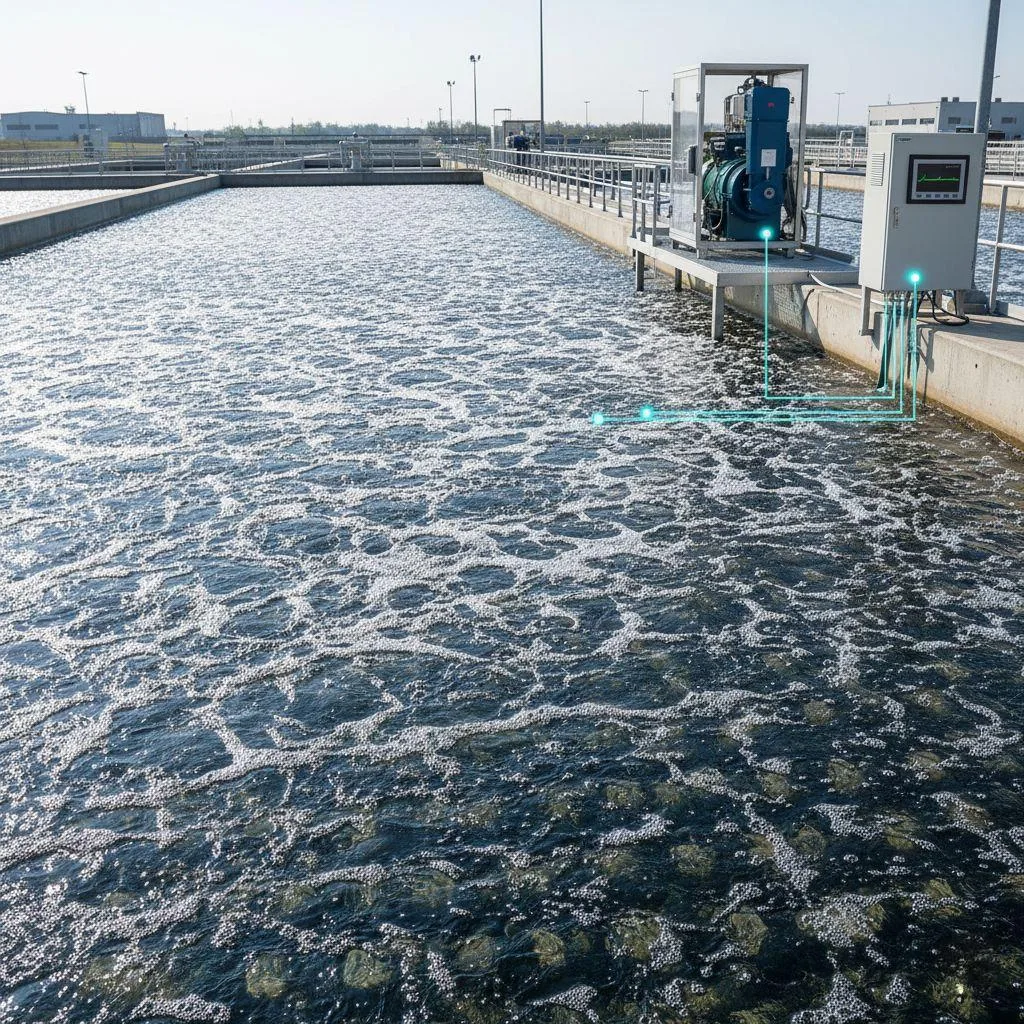

Whether for aeration blowers or dosing pumps, the EV510A’s P-Type mode and built-in PID provide reliable, energy-efficient flow control to optimize the water treatment process.
Textile Machinery
The “Instantaneous stop not stop” function is critical for the textile industry, preventing yarn breakage during brief power sags. SVC ensures constant tension during winding.
Control Characteristics
Parameter | G-Type: 0037G | P-Type:0055P |
|---|---|---|
Control Mode | V/F Control, Open-loop Vector (SVC), Closed-loop Vector (FVC) | V/F Control, Open-loop Vector (SVC), Closed-loop Vector (FVC) |
Overload Capacity | 150% Rated Current 60s; 180% Rated Current 3s | 120% Rated Current 60s; 150% Rated Current 3s |
Starting Torque (SVC) | 0.5Hz / 150% | 0.5Hz / 100% |
Speed Range (FVC) | 1:1000 | 1:1000 |
Steady Speed Precision (FVC) | ±0.02% | ±0.02% |
Digital Inputs (DI) | 7 channels (1 @ 100kHz) | 7 channels (1 @ 100kHz) |
Analog Inputs (AI) | 2 channels (AI1: 0-10V, AI2: 0-10V/0-20mA) | 2 channels (AI1: 0-10V, AI2: 0-10V/0-20mA) |
Structural Dimensions
Dimensions (W x D x H) | 112 x 138 x 180 mm |
|---|---|
Installation Size (A x B) | 101 x 171 mm |
Installation Hole | φ4.6 |
Weight | 2.1 kg |
Quality Assurance
This product is developed and manufactured by Nanjing Oulu Electric Corp., Ltd. As a national high-tech enterprise focusing on industrial automation and new energy, we have an experienced R&D team and advanced production facilities, dedicated to providing high-quality, reliable products and solutions to customers worldwide.
Frequently Asked Questions (FAQ)
Q: What’s the difference between G-Type and P-Type on the EV510A-0037G/0055P-T4?
A: This refers to the drive’s dual-rating, which you select via parameter P9-76. G-Type (General) is for 3.7kW Constant Torque loads (like conveyors) and provides higher overload capacity (150% for 60s). P-Type (Pump) is for 5.5kW Variable Torque loads (like fans/pumps) with a standard overload (120% for 60s).
Q: What is the difference between the EV510A and EV510?
A: The EV510A is the upgraded version of the EV510 series. The EV510A features a “smaller in size, more compact in structure, and more stable in performance”.
Q: How does the “Instantaneous stop not stop” function actually work?
A: When the VFD detects an instantaneous power loss or voltage sag, it immediately enters a special mode. It uses the feedback energy generated by the motor’s own inertia (regenerative energy) to “compensate for voltage-drop to keep running for a short time” until grid power returns.
Q: Can this VFD control two motors?
A: Yes, but not simultaneously. The EV510A has a “Multi-motor Switch” function. You can set up and store two different sets of motor parameters (in parameter groups P1 and A2) and switch between them using a digital input terminal (by setting a function in P4 group) or parameter P0-24.
Q: What are the most common fault codes for the EV510A?
A: Common VFD fault codes include FU02 (Over current during acceleration), FU06 (Overvoltage during deceleration), FU09 (Under voltage), and FU14 (Inverter Overheat). Please see the How-To guide below for detailed troubleshooting.
Q: Does the EV510A support PID control?
A: Yes, it features a powerful “Built-in PID” controller. This allows it to receive an analog feedback signal (like a pressure or temperature sensor) and automatically manage a closed-loop process. The parameters are in group PA.
Quick Start Guide (How-To)
This guide is intended to help you quickly set up and diagnose the EV510A Variable Frequency Drive based on the user manual.
Guide 1: Quick Start – How to Perform Motor Auto-Tuning (Auto-Tune)
To achieve the best performance in Sensorless Vector Control (SVC) mode (when P0-01=0You must first perform a motor auto-tune.
- Input Motor Nameplate Data: In parameter group
P1Enter the following values from your motor’s nameplate:P1-01: Motor 1 Rated power (kW)P1-02: Motor 1 Rated voltage (V)P1-03: Motor 1 Rated current (A)P1-04: Motor 1 Rated frequency (Hz)P1-05: Motor 1 Rated speed (rpm)
- Select Auto-Tune Mode: Set parameter
P1-37to choose the tuning type:1: Asynchronous machine static self-learning2: Asynchronous machine dynamic complete self-learning (Requires motor to be uncoupled)3: Asynchronous machine static complete self-learning
- Execute Auto-Tune: After selecting the mode, press the RUN key to begin the auto-tuning process.
Guide 2: Advanced Application – How to Set Up PID Control (for Constant Pressure)
Using the built-in PID (Group PA) allows you to create a constant-pressure pump system without an external PLC.
- Set PID Feedback Source: Wire your 4-20mA pressure transducer to analog input AI2. Set the
AI2jumper on the control board to ‘I’ (current). Then, set the parameterPA-02 = 1(PID feedback source = AI2). - Set PID Target Value (Setpoint): Set
PA-00 = 0(PID reference source =PA-01). Then, enter your target pressure percentage inPA-01(e.g.,50.0%). - Adjust PID Gains:
PA-05(Proportional Gain Kp1): Default is20.0. Adjust to speed up or slow down the response.PA-06(Integral Time Ti1): Default is2.00s. Adjust to eliminate steady-state error.
- ** Set Feedback Loss Detection:** To prevent the pump from running at max speed if the sensor wire breaks, set PID feedback loss detection.
PA-26: Set detection level (e.g.,10.0%).PA-27: Set detection time (e.g.,2.0s). This will trigger a faultFU31(PID feedback lost).
Core Features & Advantages
The design of the EV510A-0037G/0055P-T4 merges cutting-edge control technology, robust reliability functions, and unparalleled integration flexibility, as documented in the official technical data.
Precision Control & Superior Performance
- Versatile Control Modes: Supports V/F control, Sensorless Vector Control (SVC), and Closed-loop vector control (FVC) with an optional PG card.
- Exceptional Starting Torque: Leveraging its advanced vector algorithm, the EV510A delivers powerful torque output at low frequencies.
- G-Type (SVC): Achieves 150% of rated torque at just 0.5Hz.
- G-Type (FVC): Achieves 180% of rated torque at 0Hz.
- P-Type (SVC): Achieves 100% of rated torque at 0.5Hz.
- High Control Accuracy: In Closed-loop vector control (FVC) mode, the speed range reaches 1:1000 with a steady-speed precision of $\pm$0.02%. In Open-loop vector control (SVC) mode, the speed range is 1:100 with a precision of $\pm$0.5%.
- Wide Output Frequency: Supports an output frequency range of 0~500Hz in both vector and V/F control modes.
Robust Reliability & Intelligent Protection
- Instantaneous Stop Not Stop (Ride-Through): This is a core reliability feature. During an instantaneous power loss or voltage sag, the VFD uses the motor’s feedback energy (regeneration) to “compensate voltage drop to keep running for a short time”. This is critical for continuous processes (like textiles) to prevent costly material waste and downtime.
- Quick Current-limit Function: When a sudden load change or abnormality occurs, this function automatically “reduces overcurrent error on max extent” to minimize overcurrent faults, protecting the frequency inverter and ensuring continuous operation.
- Heavy-Duty Overload Capacity: Provides optimized overload protection for both G-Type and P-Type loads :
- G-Type (3.7kW): 150% of rated current for 60 seconds; 180% for 3 seconds.
- P-Type (5.5kW): 120% of rated current for 60 seconds; 150% for 3 seconds.
Flexible Integration & Rich Interfaces
- Extensive I/O Ports: Provides a comprehensive I/O configuration to meet complex automation needs.
- 7 programmable Digital Inputs (DI): one of which supports up to 100KHz high-speed pulse input.
- 2 programmable Analog Inputs (AI): AI1 supports 0~10V; AI2 supports 0~10V or 0~20mA.
- 2 Relay Outputs: (1x Form C, 1x Form A).
- 2 programmable Analog Outputs (AO): Both support 0~20mA current or 0~10V voltage output.
- 1 High-Speed Pulse Output: (Open collector) supporting 0~100kHz.
- Multi-Motor Switch Function: The system has two sets of motor parameters (P1 and A2 groups), allowing it to switch control between two different motors via a terminal input.
- Built-in PID Function: Includes a professional PID controller, making it easy to “realize process control closed-loop system conveniently” (e.g., constant pressure water supply).
- Standard Communication Interface: Comes standard with an RS485 (Modbus) interface and supports CANopen and CAN link buses.
