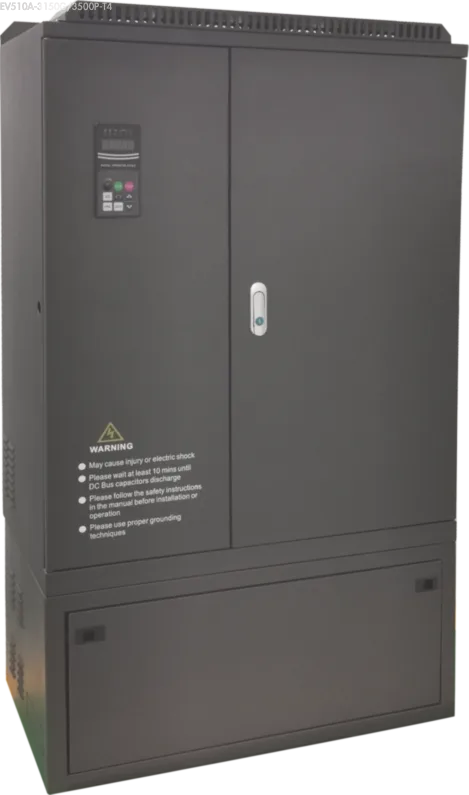

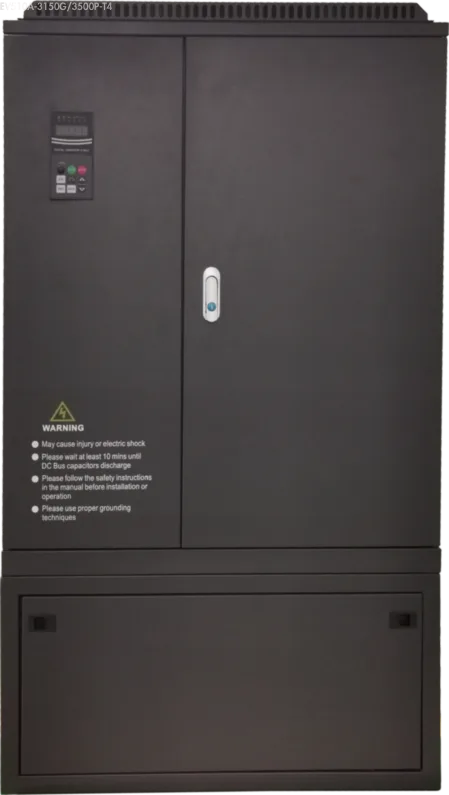

EV510A-3150G/3500P-T4 | 315kW(425HP) / 350kW(475HP) 380V Dual Rated Vector VFD
|
Parameter |
G-Type: 0037G |
P-Type: 0055P |
|---|---|---|
|
Motor Power |
3.7 kW / 5 HP (Constant Torque) |
5.5 kW / 7.5 HP (Variable Torque) |
|
Output Current |
9.0 A |
9.0 A |
|
Rated Input Current |
10.5 A |
10.5 A |
|
Power Capacity |
5.9 kVA |
5.9 kVA |
|
Input Power |
Three-Phase 380V (±15%) |
Three-Phase 380V (±15%) |
EV510A-3150G/3500P-T4: A High-Power VFD for Maximum Performance and Uptime
The EV510A-3150G/3500P-T4 is a high-performance vector frequency inverter engineered for high-capacity industrial systems. Its core advantage is the G/P Dual-Rated design, which allows a single unit to be expertly configured for two different operational modes
-
G-Type (Constant Torque): Rated for 315kW (approx. 425 HP) “General” (G-type) loads, such as large extruders, crushers, or rolling mills. This mode is defined by its high starting torque and robust overload capacity.
-
P-Type (Variable Torque): Rated for 350kW (approx. 475 HP) “Pump or fans” (P-type) loads. This mode is optimized for energy efficiency in applications like centrifugal pumps and large-scale ventilation.
This intelligent dual-rating streamlines inventory for system integrators and provides a standardized, high-performance control platform. As an enhanced version of the EV510 series, the EV510A is “smaller in size, more compact in structure… and more stable in performance”. It utilizes a “high-performance current vector control” algorithm for outstanding precision and integrates essential reliability features like “Instantaneous stop not stop” (power loss ride-through) and a “Quick current-limit function” to maximize system uptime.
Why Choose the EV510A-3150G/3500P-T4?
In the 315-350kW power class, the EV510A-3150G/3500P-T4 provides an intelligent combination of power, precision, and value.
-
Strategic Power Flexibility (Dual-Rated): The G/P dual-rating is this drive’s most intelligent feature. It eliminates the need to source and stock two separate AC drives for a 315kW heavy-duty machine and a 350kW fan. The EV510A-3150G/3500P-T4 handles both, reducing inventory costs and simplifying procurement.
-
Engineered for Extreme Uptime: For critical processes, reliability is paramount. The “Instantaneous stop not stop” function provides essential ride-through for brief power sags, while the “Quick Current-limit” actively prevents nuisance trips from load shocks, keeping your operation running.
-
A Compact High-Power Solution: As the upgraded EV510A version, this drive is “smaller in size, more compact in structure, and more stable in performance”. This saves valuable cabinet real estate and contributes to a lower Total Cost of Ownership (TCO) through enhanced reliability.
-
Integrated Intelligence: This is more than a simple motor spinner. With powerful Sensorless Vector Control (SVC) for high-torque tasks and a “Built-in PID” controller for process loops, this single drive can manage a wide range of sophisticated automation tasks without needing an external PLC.
Typical Application Fields
-

Large Industrial Fans
Perfect for 475 HP large industrial fans, blowers, and HVAC systems. The built-in PID reads duct pressure to precisely match fan speed to building demand, dramatically reducing energy consumption.
-

Heavy-Duty Cranes
For heavy-duty hoisting, FVC mode (with a PG card) provides the 180% torque at 0Hz needed for safely lifting and holding 315kW (425 HP) loads, ensuring precision and safety.
-

Industrial Shredders
The 425 HP G-Type rating delivers the extreme torque and 150% overload capacity required for industrial shredders to process tough materials like plastic, wood, or metal scrap.
Control Characteristics
|
Parameter |
G-Type: 3150G |
P-Type:3500P |
|---|---|---|
|
Control Mode |
V/F Control, Open-loop Vector (SVC), Closed-loop Vector (FVC) |
V/F Control, Open-loop Vector (SVC), Closed-loop Vector (FVC) |
|
Overload Capacity |
150% Rated Current 60s; 180% Rated Current 3s |
120% Rated Current 60s; 150% Rated Current 3s |
|
Starting Torque (SVC) |
0.5Hz / 150% |
0.5Hz / 100% |
|
Speed Range (FVC) |
1:1000 |
1:1000 |
|
Steady Speed Precision (FVC) |
±0.02% |
±0.02% |
|
Digital Inputs (DI) |
7 channels (1 @ 100kHz) |
7 channels (1 @ 100kHz) |
|
Analog Inputs (AI) |
2 channels (AI1: 0-10V, AI2: 0-10V/0-20mA) |
2 channels (AI1: 0-10V, AI2: 0-10V/0-20mA) |
Structural Dimensions
|
Dimensions (W x D x H) |
720 x 382 x 920 mm |
|---|---|
|
Installation Size (A x B) |
460 (230+230 3 holes in total) x 895 mm |
|
Installation Hole |
φ13 |
|
Weight |
155 kg |
Quality Assurance
This product is developed and manufactured by Nanjing Oulu Electric Corp., Ltd. As a national high-tech enterprise focusing on industrial automation and new energy, we have an experienced R&D team and advanced production facilities, dedicated to providing high-quality, reliable products and solutions to customers worldwide.
Frequently Asked Questions (FAQ)
Q: What is the G/P Dual-Rating on the EV510A-3150G/3500P-T4?
A: This specifies the drive’s dual-rating, selectable via parameter P9-76. G-Type (General) is rated for 315kW Constant Torque applications (like extruders) and provides a high overload capacity (150% for 60s).[23, 23] P-Type (Pump) is rated for 350kW Variable Torque applications (like fans) with a standard overload (120% for 60s).
Q: Is the EV510A an upgrade from the EV510?
A: Yes, the EV510A is the upgraded version. It is “smaller in size, more compact in structure, and more stable in performance”.
Q: What is “Instantaneous stop not stop”?
A: This is a power loss ride-through function. If the power sags, the drive uses the motor’s feedback energy to “compensate for voltage-drop to keep running for short time,” preventing a shutdown.
Q: Can this VFD control two different motors?
A: Yes, but not simultaneously. It has a “Multi-motor Switch” function. You can program two motor profiles (in parameter groups P1 and A2) and switch between them using a digital input or parameter P0-24.
Q: What are the most common fault codes?
A: Common VFD fault codes include FU02 (Over current during acceleration), FU06 (Overvoltage during deceleration), FU09 (Under voltage), and FU14 (Inverter Overheat).
Q: Does this drive have a built-in PID controller?
A: Yes, it features a powerful “Built-in PID” controller.[23, 23] This allows it to receive an analog feedback signal (like a pressure or temperature sensor) and automatically manage a closed-loop process. The parameters are in a group PA.
Quick Start Guide (How-To)
This guide is intended to help you quickly set up and diagnose the EV510A Variable Frequency Drive based on the user manual.
Guide 1: Commissioning – How to Auto-Tune the Motor
To achieve the best performance in Sensorless Vector Control (SVC) mode (when P0-01=0), you must first perform a motor auto-tune.
-
Input Motor Nameplate Data: In parameter group
P1Enter the following values from your motor’s nameplate:-
P1-01: Motor 1 Rated power (kW) -
P1-02: Motor 1 Rated voltage (V) -
P1-03: Motor 1 Rated current (A) -
P1-04: Motor 1 Rated frequency (Hz) -
P1-05: Motor 1 Rated speed (rpm)
-
-
Select Auto-Tune Mode: Set parameter
P1-37to choose the tuning type:-
1: Asynchronous machine static self-learning -
2: Asynchronous machine dynamic complete self-learning (Requires motor to be uncoupled)
-
-
Execute Auto-Tune: After selecting the mode, press the RUN key to begin the auto-tuning process.
Guide 2: Process Control – How to Set Up PID
Using the built-in PID (Group PA) allows you to create a constant-pressure pump system without an external PLC.
-
Set PID Feedback Source: Wire your 4-20mA pressure transducer to analog input AI2. Set the
AI2jumper on the control board to ‘I’ (current). Then, set the parameterPA-02 = 1(PID feedback source = AI2). -
Set PID Target Value (Setpoint): Set
PA-00 = 0(PID reference source =PA-01). Then, enter your target pressure percentage inPA-01(e.g.,50.0%). -
Adjust PID Gains:
-
PA-05(Proportional Gain Kp1): Default is20.0. Adjust to speed up or slow down the response. -
PA-06(Integral Time Ti1): Default is2.00s. Adjust to eliminate steady-state error.
-
-
Set Feedback Loss Detection: To prevent the pump from running at max speed if the sensor wire breaks, set PID feedback loss detection.
-
PA-26: Set detection level (e.g.,10.0%). -
PA-27: Set detection time (e.g.,2.0s). This will trigger a faultFU31(PID feedback lost)
-
Core Features & Advantages
The design of the EV510A-3150G/3500P-T4 combines advanced control technology, robust protection, and versatile I/O, with all specifications sourced directly from the official technical manuals.
Precision Control & Vector Performance
-
Advanced Control Modes: Features versatile control modes including V/F, Sensorless Vector Control (SVC), and high-precision Closed-loop Vector Control (FVC) via an optional PG card.
-
Powerful Starting Torque: The advanced vector algorithm delivers exceptional torque at low speeds.
-
G-Type (SVC): Achieves 150% of rated torque at just 0.5Hz.
-
G-Type (FVC): Achieves 180% of rated torque at 0Hz.
-
P-Type (SVC): Achieves 100% of rated torque at 0.5Hz.
-
-
Exceptional Precision: In Closed-loop vector control (FVC) mode, the drive achieves a 1:1000 speed range with a steady-speed precision of ±0.02%. In SVC mode, the speed range is 1:100 with a precision of ±0.5%.
-
High-Speed Output: Supports an output frequency range of 0~500Hz, ideal for high-speed motor applications.
Robust Reliability & Uptime
-
Instantaneous Stop Not Stop (Ride-Through): A core design principle for maximum uptime. During a momentary power loss, the drive uses the motor’s regenerative energy to “compensate for voltage drop to keep running for a short time,” preventing a costly shutdown.
-
Quick Current-limit Function: Automatically “Reduce over current error on max extent” to protect the inverter from sudden load shocks and minimise over-current faults, ensuring continuous operation.
-
Heavy-Duty Overload Capacity: Provides optimised overload protection for both G-Type and P-Type loads :
-
G-Type (315kW): 150% of rated current for 60 seconds; 180% for 3 seconds.
-
P-Type (350kW): 120% of rated current for 60 seconds; 150% for 3 seconds.
-
Flexible System Integration
-
Comprehensive I/O: Features a full suite of programmable I/O for complex automation.
-
7 programmable Digital Inputs (DI): one of which supports up to 100KHz high-speed pulse input.
-
2 programmable Analog Inputs (AI): AI1 (0~10V) and AI2 (0~10V or 0~20mA).
-
2 Relay Outputs: (TA/TB/TC and RA/RC).
-
2 programmable Analogue Outputs (AO): Both support 0~20mA or 0~10V output.
-
-
Multi-Motor Switching: Capable of storing two independent motor parameter sets (in groups
P1andA2) and switching between them via a digital input, allowing one VFD to control two different motors. -
Built-in PID Controller: Includes a full-featured PID controller (Group
PA) to “realise process control closed-loop system conveniently,” perfect for managing constant pressure or flow without an external PLC. -
Standard Communications: Equipped with RS-485 (Modbus) and supports CAN link buses for easy system integration.
|
