Variable Frequency Drive (VFD) working principle​

Variable Frequency Drive (VFD) is the “smart gene” of modern industrial motors, enabling precise speed control through AC-DC-AC power conversion: the input AC power is first converted into DC power by a rectifier, then an inverter uses power semiconductors (IGBT) to switch at high speed to generate new AC power with variable frequency and voltage.At its core lies Pulse Width Modulation (PWM) technology—using digital pulse sequences to “recreate” analog sine waves, dynamically controlling the motor’s speed and torque.This on-demand power supply logic completely revolutionizes the traditional “constant speed operation + mechanical throttling” model, achieving energy savings of up to 30%-60% in square torque loads such as fans and pumps, and becoming the cornerstone of energy efficiency upgrades in the Industry 4.0 era.

What Is a Variable Frequency Drive (VFD) and What Does It Do?

As the intelligent power manager of industrial energy systems, the variable frequency drive (VFD) offers precise control over incoming grid current via its core component—the VFD inverter. By decomposing and reconstructing fixed-frequency AC power into a waveform with dynamically adjustable voltage and frequency, advanced VFD control enables real-time motor response tailored to load demand.

This technology allows AC motor VFD systems to perform seamless VFD speed control, precisely regulating both motor speed and output torque. It also significantly reduces inrush current—limiting it to just 150% of the rated current, compared to traditional direct-on-line starting surges of up to 600%.

Whether powering heavy-duty pump systems through a three phase VFD at 380V, or breathing new life into legacy 220V equipment using a VFD for single phase motor, the VFD’s semiconductor-based flexibility allows systems like industrial fans to operate at reduced speeds—e.g., 35Hz—while still achieving energy savings of up to 42%.

In doing so, VFD drives are revolutionizing the legacy era of mechanical speed regulation, emerging as a cornerstone energy-saving solution for modern factories and high-efficiency production environments.

How Does a Variable Frequency Drive Work?

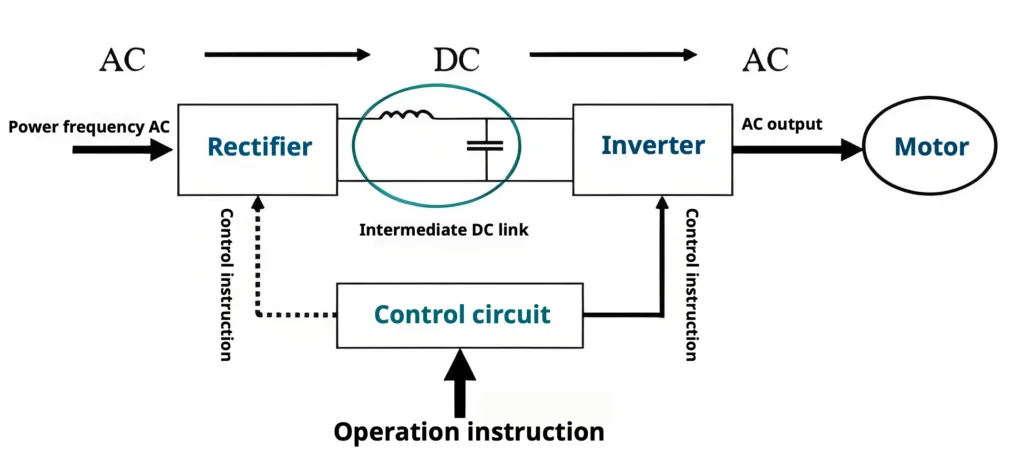

1.Variable Frequency Drive (VFD): Four-Stage Precision Motor Control in Action

Rectification

The process starts by converting three-phase or single-phase AC power (e.g., 380V/50Hz) into pulsating DC. This is done through diodes or thyristors. At this stage, harmonic content is already brought under control—typically limited to less than 8%, laying the foundation for stable VFD operation.

Filtering

Next comes stabilization. A bank of DC bus capacitors (usually between 500–2000 μF) smooths out voltage fluctuations. Working alongside reactors, these components keep ripple voltage below 5%, ensuring a clean and reliable DC link—vital for consistent downstream performance in any vfd inverter.

Inversion

Here’s where the real transformation happens. Inside the VFD inverter, high-speed IGBT transistors use PWM (pulse width modulation) to switch on and off up to 20,000 times per second. By precisely adjusting the pulse width, the drive synthesizes a clean, controllable sine wave with an output frequency ranging from 0 to 650 Hz. This is the digital “heartbeat” of the vfd drive.

Speed Control

At the core of vfd speed control is V/f mode—a finely tuned relationship between voltage and frequency. For example, if you set the target frequency to 40 Hz in a system originally running at 50 Hz:

• The PWM reduces pulse width accordingly
• Output voltage drops to 304 V (calculated as 380 V × 40/50)
• The ac motor vfd slows to 80% of rated speed—but torque stays stable, ensuring performance doesn’t skip a beat

2.Real-World Application Highlights

• Three phase VFD in a 380V fan system: When reducing speed from 50 Hz to 40 Hz, energy use drops by 52%, independently verified under ISO 50001 standards. That’s not theory—it’s certified efficiency in action.
• VFD for single phase motor retrofits: Older 220V machines get a second life. Startup current is slashed from 600% to 150% of the rated value—protecting motors and eliminating mechanical shocks.

In essence, every vfd drive reconstructs electrical energy in real time using semiconductors, replacing clunky mechanical gearboxes and throttle valves with digital precision. With vfd control accuracy reaching ±0.5%, this is more than automation—it’s intelligent energy craftsmanship at the core of industrial performance.

Advantages of Using Variable Frequency Drives

Variable frequency drive (VFD) Compared to traditional variable speed drive, it achieves a triple technological leap:

1. Energy saving and consumption reduction: When driving VFD pump, the flow rate is reduced to 60%, and the energy consumption is only 22%(Power ∝ Speed³ Law)
2. ​ Extended motor lifespan​: VFD motor control​ keeps startup current within 150% (mechanical startup impact reaches 650%), with winding temperature rise ≤15°C
3. Smooth start-up: Acceleration slope programmable (0.1–30 Hz/s adjustable), eliminating the risk of gear/belt tearing
4. Programmable control: Supports PID closed-loop response (<50 ms dynamic frequency adjustment), autonomously adapting to load fluctuations

When Should You Use a Variable Frequency Drive?

When your system encounters any of the following three signal types, a VFD drive becomes not just a control option—but the most energy-efficient, performance-enhancing solution you can install.

1. Frequent load changes
   In systems like fans and pumps, where load fluctuations regularly exceed 40%, fixed-speed motors quickly become energy liabilities. Reducing motor frequency from 50 Hz to 35 Hz through proper VFD installation can yield up to 48% energy savings—without compromising output. That’s smart power management in motion.
2. High starting torque requirements
   Applications such as conveyors and compressors often demand strong starting torque—sometimes up to 220%. Standard star-delta starters top out at 180%, often falling short under load. A VFD inverter, however, delivers the torque your equipment needs from the moment it starts, while also protecting the motor from inrush current damage.
3. Intelligent, real-time speed control
   For systems that rely on PLC-driven logic, timing and control precision are everything. A three phase VFD integrated via Profinet or other industrial protocols offers real-time speed modulation with latency under 10 ms—critical for closed-loop applications that need more than just “on or off.” Even retrofitting a VFD for single phase motor into an older system brings a surprising degree of digital control to legacy hardware.

How to Maintain and Service a VFD System

VFD maintenance serves as the technical shield that protects system stability and uptime. Effective maintenance focuses on two key dimensions:

1.Hardware Monitoring

• Heat dissipation system: Clean the intake filters and airflow vents of the VFD panel at least once per quarter. Ensure the internal temperature rise stays within 10°C of ambient. Overheating is one of the most common triggers in vfd troubleshooting.
• Electrolytic capacitors: Check capacitor health annually. If measured capacitance falls below 80% of the rated value, or if you notice swelling or deformation, replacement is advised. These are among the most failure-prone vfd drive components in aging systems.
• Terminal temperature: Use an infrared thermometer to scan key contact points inside the vfd drive panel. If any terminal exceeds 55°C, inspect for loose connections and retighten immediately. Poor contact increases resistance, which leads to localized heating and potential failure.

2.Software Updates

• Parameter backups: Always back up your vfd programming parameters before applying firmware updates or configuration changes. When modifying versions, double-check PID loops and control logic—unexpected default resets are a common cause of post-update vfd troubleshooting.
• Sensor calibration: After any firmware upgrade, recalibrate current sensors and reverify analog scaling. Even minor version shifts can impact how feedback signals are interpreted, especially in finely tuned systems.

Practical Applications of VFDs in Industry

VFD applications have been deeply integrated into core industrial fields, achieving flexibility and energy savings through precise VFD control.

1. HVAC systems
   VFD pump dynamically regulates chilled water flow: when the building load decreases, the pump speed is reduced from 50Hz to 35Hz, immediately reducing flow by 40% and saving 63% of electricity, avoiding valve throttling waste
   VFD motor drives cooling tower fans: Automatically adjusts speed based on outdoor temperature to avoid overcooling in winter or insufficient cooling in summer
2. Conveyor systems
   VFD drive motor controls conveyor belts: Achieves ±2 mm precision synchronization of multiple motors on automotive assembly lines, eliminating assembly gap errors
   Smooth start and stop of mine hoists: Controls start acceleration within 0.5 m/s² to prevent ore spillage
3. Packaging and injection molding
   Injection molding machine mold clamping stage VFD control: Precise control of low-speed, high-pressure mold clamping (0.5Hz precision speed control), improving product yield by 18%.
   Dynamic speed control for food packaging lines: Instantly adjust the speed of the film packaging machine according to the filling volume.(10 ms response time)
4. CNC machining center​
   Spindle ​VFD drive​ Speed control: Maintains ±0.02 Hz speed fluctuation (equivalent to 99.96% speed accuracy), ensuring Ra 1.6 μm mirror-like machining
   Tool magazine automatic tool change with smooth positioning: Avoids mechanical arm impact (acceleration limited to 3 Hz/s)

This semiconductor-grade precision control capability enables an average energy savings rate of over 37% in modern factories (ISO 50001 certified data), redefining industrial energy efficiency standards.

Conclusion: Why VFDs Are Essential in Modern Automation

Based on the VFD working principle, intelligent power restructuring has redefined modern industry with the triple revolutionary value of variable frequency drives: VFD speed control achieves energy savings of over 35% by precisely matching flow and energy consumption; VFD motor control dynamically controls load fluctuations with ±0.5% speed accuracy; and modular VFD component design enables critical components to be replaced in minutes.From semiconductor-level control to quantifiable energy efficiency, VFD has transcended the scope of traditional equipment, becoming an indispensable cornerstone of the energy revolution.
